Product Information
Traditionally used for securing timber windows and door frames into masonry. They can also be used for restraining masonry to new and existing structures in non-structural applications. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- Two 6mm holes and one 9mm hole
Documents
Technical Specifications
Product Specification
| Projection mm | 150 |
| Thickness mm | 2 |
| Total Length mm | 200 |
| Upstand mm | 50 |
| Width mm | 19 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 318 x 212 x 86 |
| Pack Weight kg | 11.5 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 150SFCS |
| SKU Barcode | 5055893304808 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |

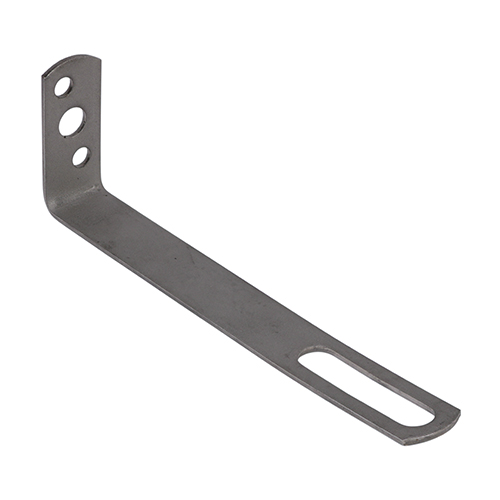

Safety Frame Cramps - A2 Stainless Steel
150/50
- Product Code: 150SFCS
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5055893304808
