Product Information
Traditionally used for securing timber windows and door frames into masonry. They can also be used for restraining masonry to new and existing structures in non-structural applications. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
  • Two 6mm holes and one 9mm hole
Documents
Technical Specifications
Product Specification
Projection mm 200
Thickness mm 2
Total Length mm 250
Upstand mm 50
Width mm 19
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
Pack Dimensions L x W x H mm 318 x 212 x 86
Pack Weight kg 15.75
CE Standard Web BS EN 845-1:2013+A1:2016
Product Code 200SFCS
SKU Barcode 5055893302170
Product Specifications
Material Austenitic Stainless Steel (A2-304)
Attribute Group 1
Brand TIMCO

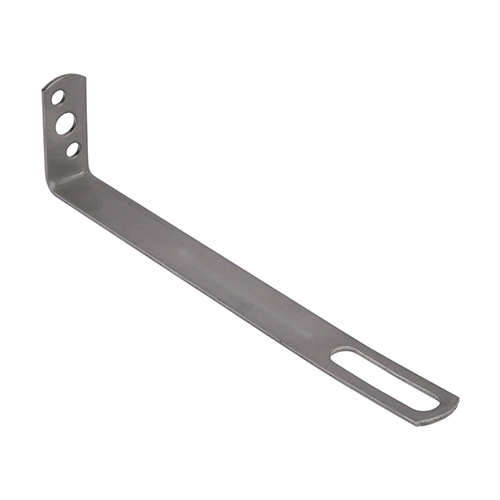

Safety Frame Cramps - A2 Stainless Steel

200/50

  • Product Code: 200SFCS
  • Pack Type: Box
  • Pack Quantity: 250
  • Barcode: 5055893302170
