Product Information

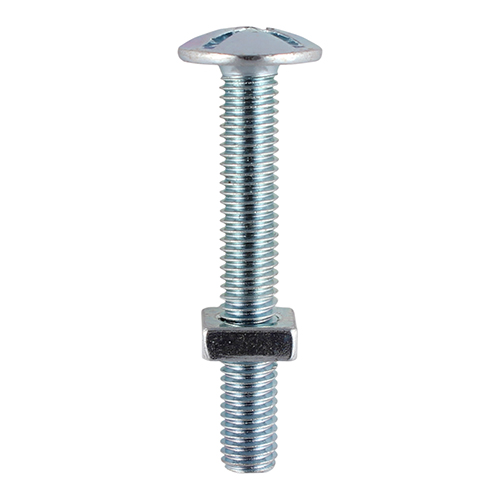

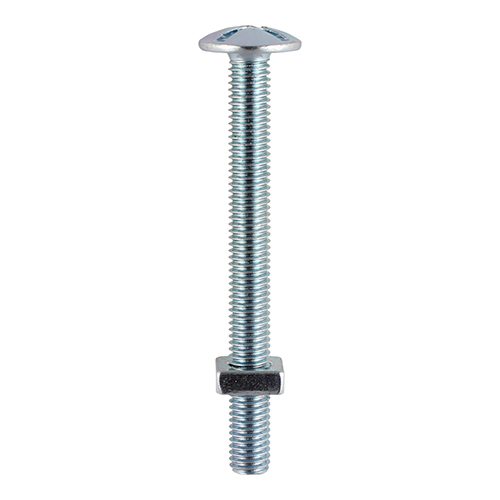

Manufactured with a large flat head, which distributes the load across the fixing to increase the clamping effectiveness. Making it ideal for clamping thin sheet metal, plastic and wood.
Documents
Technical Specifications
Product Specification
| Length mm | 60 |
| Nut Size mm | M6 |
| Nut Socket Size mm | 11 |
| Size mm | M6 x 60 |
| Thread Length mm | 60 |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 265 x 152 x 50 |
| Pack Weight kg | 1.25 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | 500 |
| Product Code | 0660RBB |
| SKU Barcode | 5055331821454 |
| Thread Dia mm | M6 |
| Head Dia mm | 14 |
Product Specifications
| Finish | Zinc |
| Head Type | Dome |
| Material | Carbon Steel |
| Nut Type | Square |
| Point Type | B Point |
| Recess Type | Cross |
| Thread Coverage | Fully Threaded |
| Thread Type | Metric |
| Included Items | M6 Square Nuts |
| Substrates | Hardwood, Softwood, Plastic, Steel, Thin Sheet Metal |
Attribute Group 1
| Brand | TIMCO |

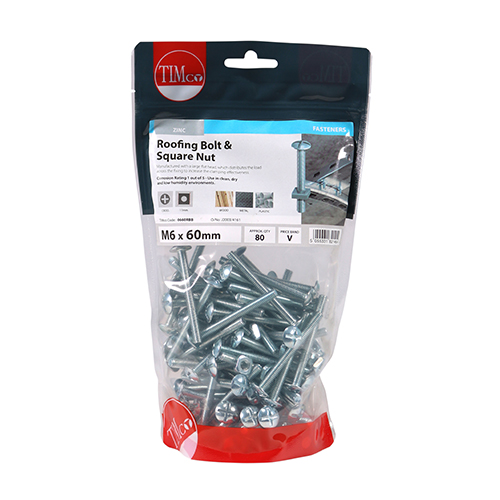

Roofing Bolts & Square Nuts - Zinc
M6 x 60
- Product Code: 0660RBB
- Pack Type: TIMbag
- Pack Quantity: 80
- Barcode: 5055331821454
