Product Information

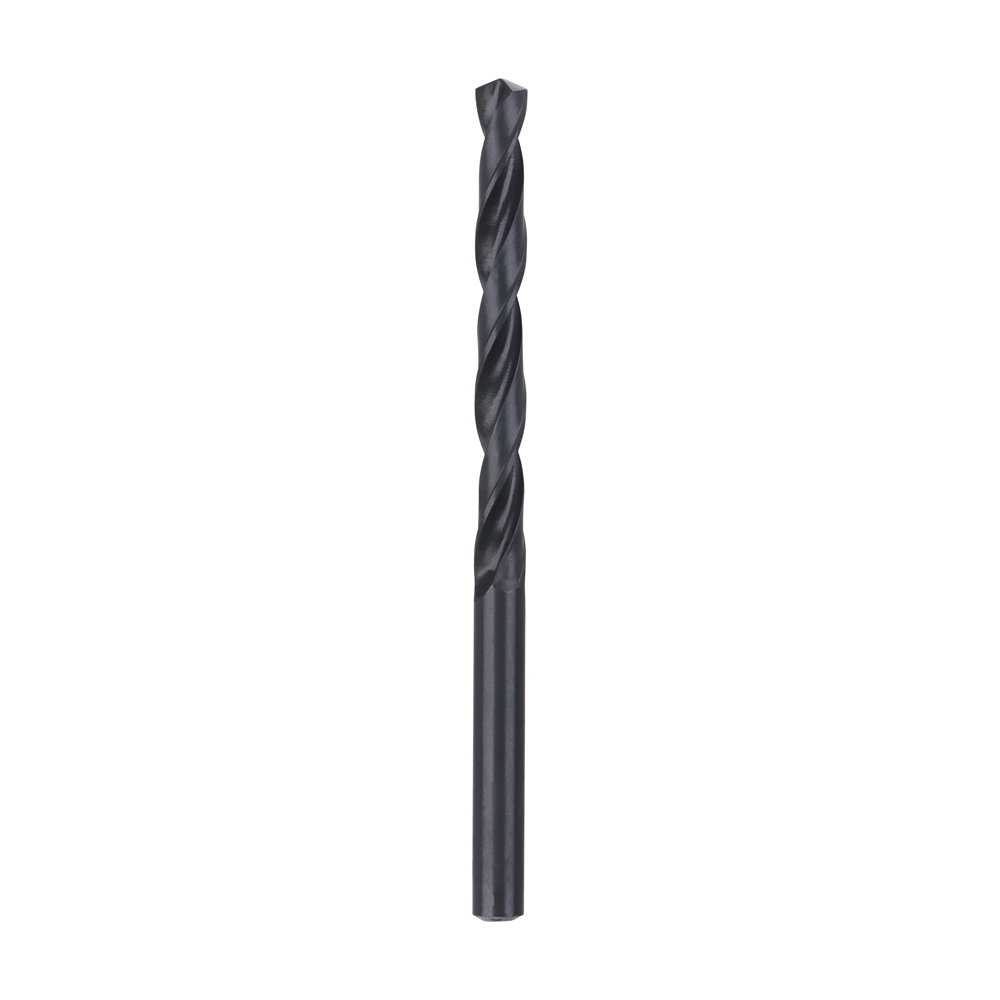

An economic HSS drill used for drilling all non-alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
- High Speed Steel (HSS)
- Black oxide finish
- Roll forged
- Manufactured to DIN 338
- Dimensionally precise
- High performance 135° split point tip eradicates the need to pre-drill/centre punch
Documents
Technical Specifications
Product Specification
| Total Length inch | 4 |
| Total Length mm | 101 |
| Working Length inch | 2.75 |
| Working Length mm | 63 |
| Drill Tip | 135° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 125 x 45 x 24 |
| Pack Weight kg | 0.19 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 338 |
| Product Code | HSIR14 |
| SKU Barcode | 5055017535460 |
| Size imp | 1/4 x 4 |
| Shank Dia inch | 1/4 |
| Drill Dia inch | 1/4 |
Product Specifications
| Finish | Black Oxide |
| Material | HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals |
Attribute Group 1
| Brand | TIMCO |

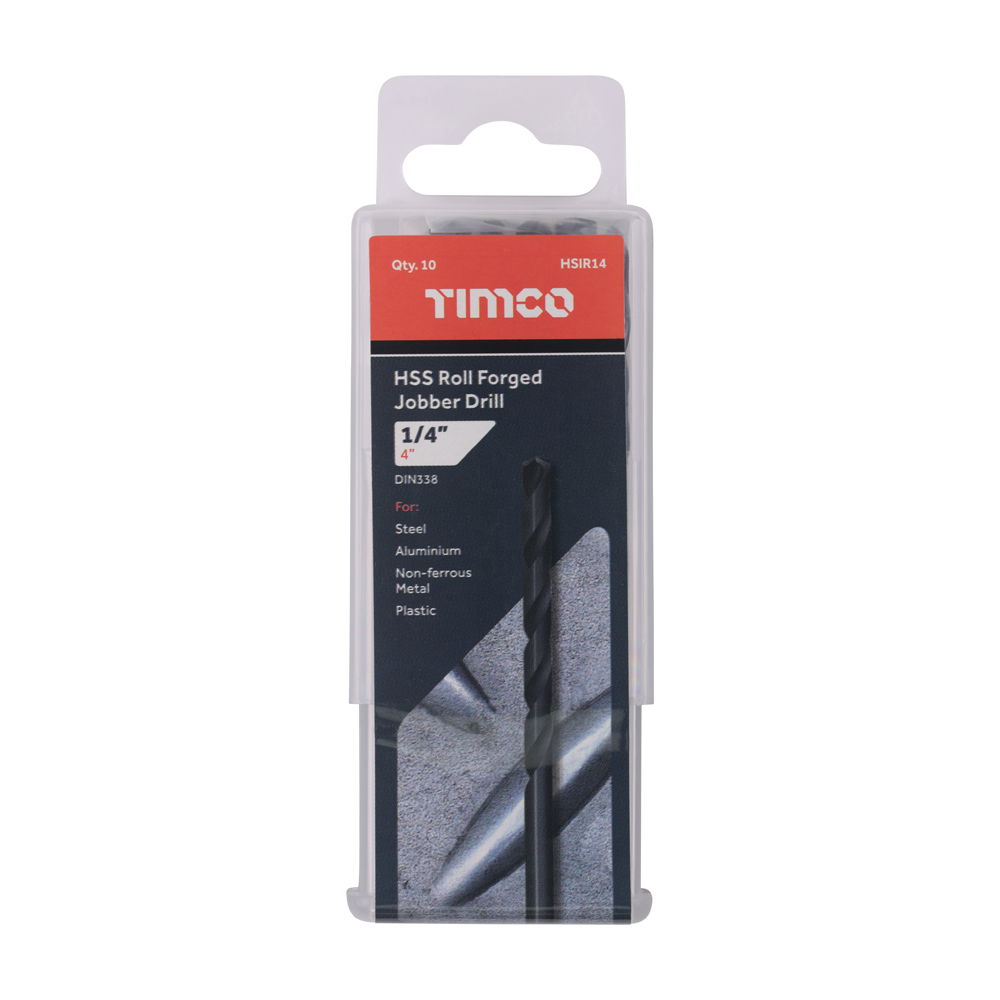

Roll Forged Jobber Drills - HSS
1/4"
- Product Code: HSIR14
- Pack Type: Tube
- Pack Quantity: 10
- Barcode: 5055017535460
