Product Information
An economic HSS drill used for drilling all non-alloy materials.
- High Speed Steel (HSS)
- Black oxide finish
- Roll forged
- Manufactured to DIN 338
- Dimensionally precise
Documents
Technical Specifications
Product Specification
| Total Length inch | 2 1/4 |
| Total Length mm | 57 |
| Working Length inch | 1.25 |
| Working Length mm | 30 |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 13 x 25 x 90 |
| Pack Weight kg | 0.025 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 338 |
| Product Code | HSIR332 |
| SKU Barcode | 5055017535361 |
| Size imp | 3/32 x 2 1/4 |
| Shank Dia inch | 3/32 |
| Drill Dia inch | 3/32 |
Product Specifications
| Finish | Black Oxide |
| Material | HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals |
Attribute Group 1
| Brand | TIMCO |

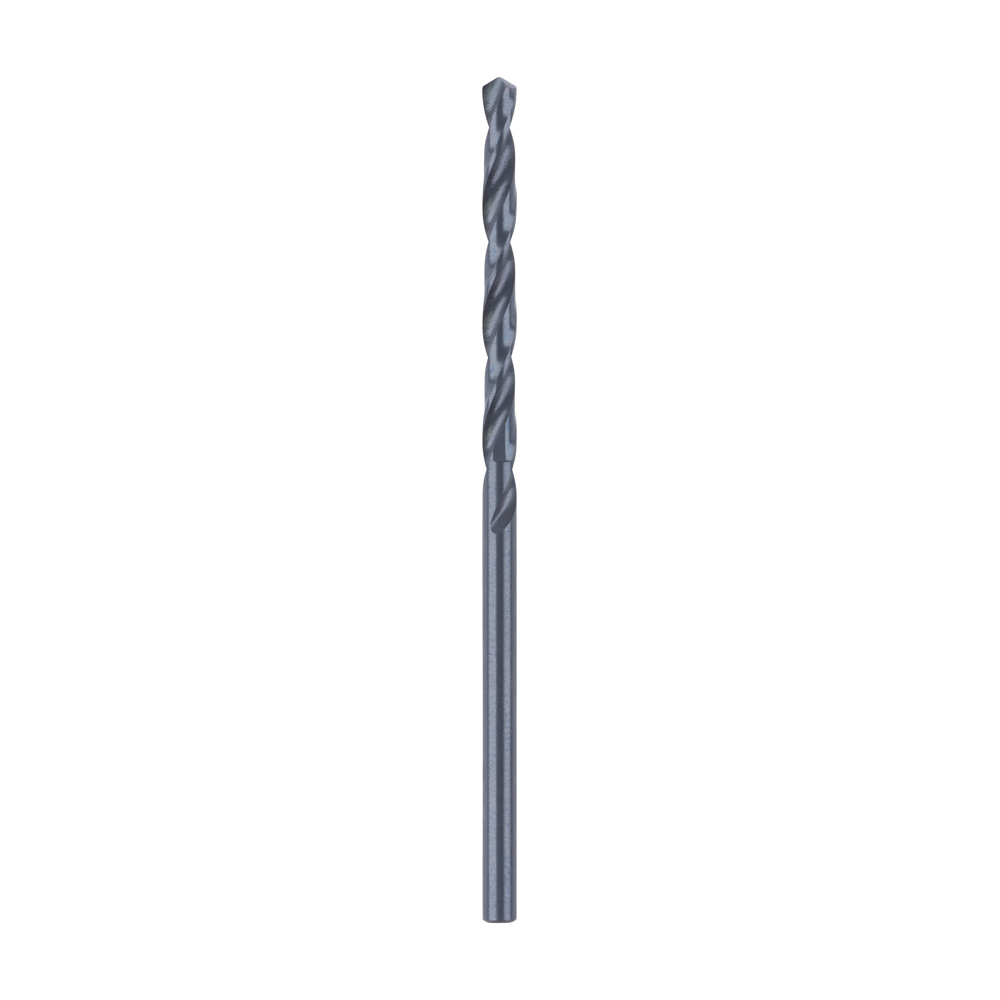

Roll Forged Jobber Drills - HSS
3/32"
- Product Code: HSIR332

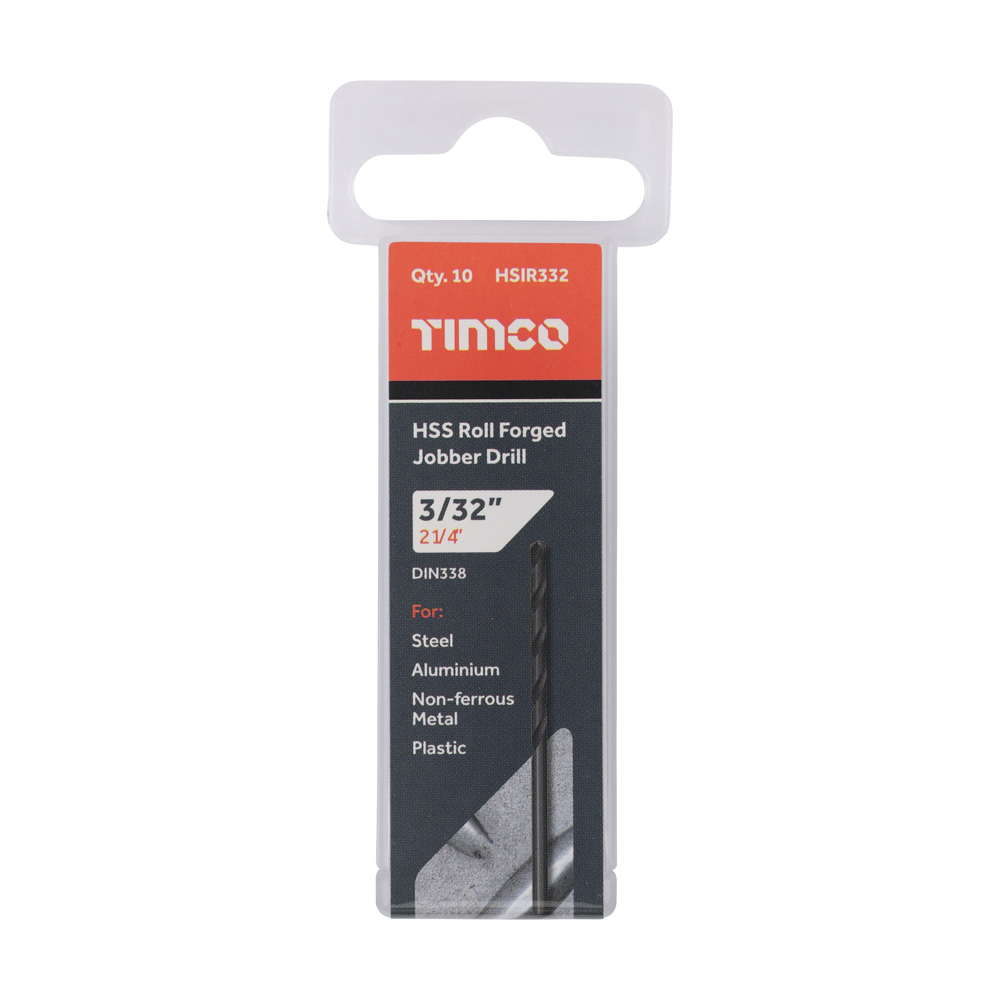

- Pack Type: Tube
- Pack Quantity: 10
- Barcode: 5055017535361
