Product Information

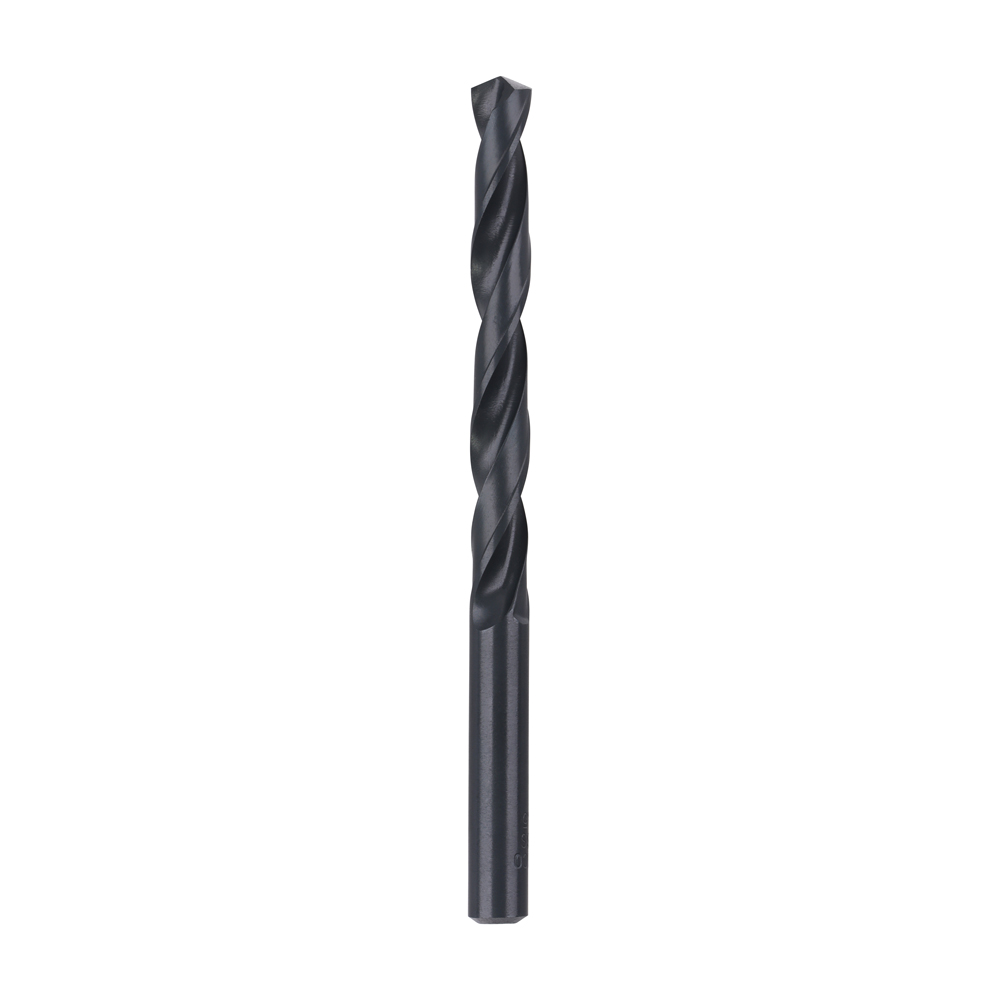

An economic HSS drill used for drilling all non-alloy materials. The 135° split point prevents the bit from drifting and enables faster penetration.
- High Speed Steel (HSS)
- Black oxide finish
- Roll forged
- Manufactured to DIN 338
- Dimensionally precise
- High performance 135° split point tip eradicates the need to pre-drill/centre punch
Documents
Technical Specifications
Product Specification
| Size mm | 8.5 x 117 |
| Total Length mm | 117 |
| Working Length mm | 75 |
| Drill Tip | 135° Split |
| Shank Type | Straight |
| Pack Dimensions L x W x H mm | 139 x 46 x 32 |
| Pack Weight kg | 0.216 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 338 |
| Product Code | HSSR85 |
| SKU Barcode | 5055017534135 |
| Drill Dia mm | 8.5 |
Product Specifications
| Finish | Black Oxide |
| Material | HSS Steel |
| Substrates | Plastic, Steel, Aluminium, Non-Ferrous Metals |
Attribute Group 1
| Brand | TIMCO |

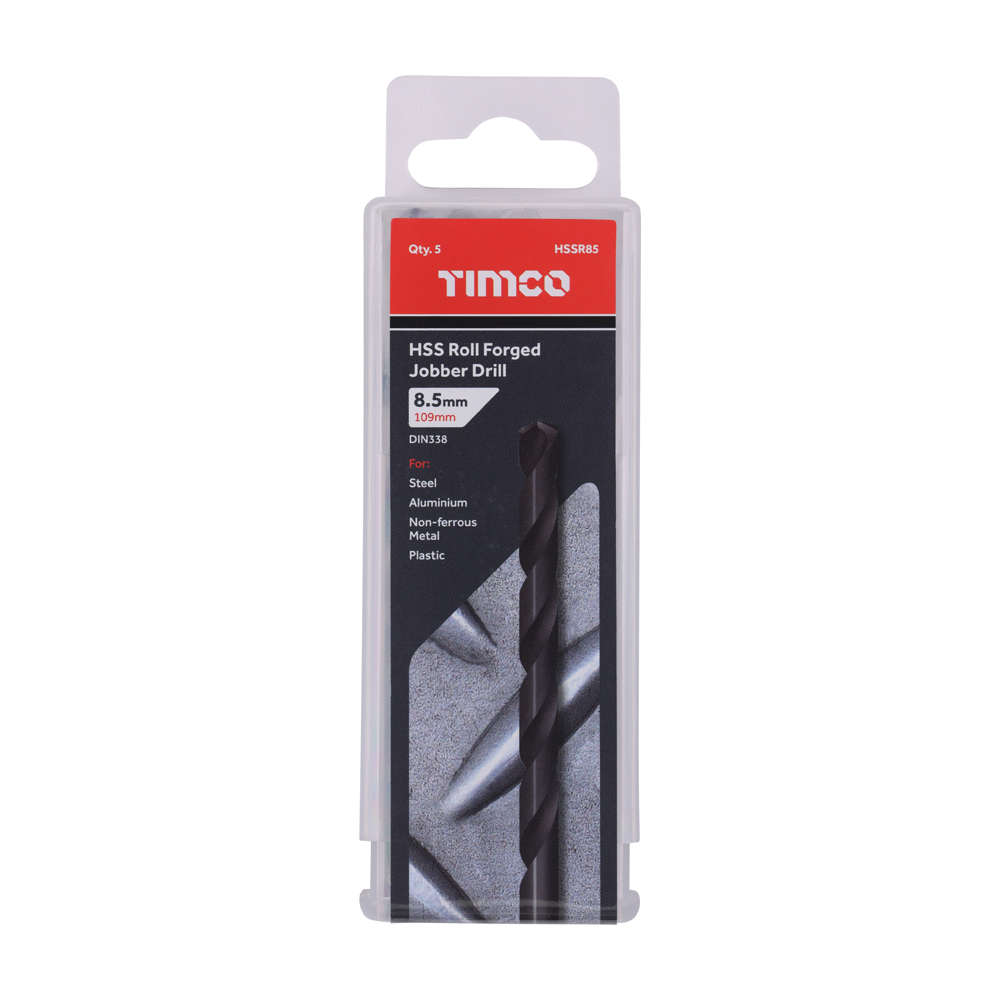

Roll Forged Jobber Drills - HSS
8.5mm
- Product Code: HSSR85
- Pack Type: Tube
- Pack Quantity: 5
- Barcode: 5055017534135
