Product Information
Ideal for heavy duty sheet to sheet applications where welding and bolting is not possible an increased clamping force is required. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The aluminium body ensures consistent performance and an enhanced resistance to corrosion.
- Aluminium body for an enhanced resistance to corrosion
Documents
Technical Specifications
Product Specification
| Collar Thickness mm | 2.5 |
| Head Length mm | 25 |
| Mandrel Length mm | 27 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Grip Range mm | 21 |
| Min Grip Range mm | 16 |
| Pack Dimensions L x W x H mm | 122 x 114 x 132 |
| Pack Weight kg | 1.1 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 360 |
| DIN Standard | DIN 7337 |
| Product Code | 748264 |
| SKU Barcode | 5056110829173 |
| Size Head Dia x L mm | 4.8 x 25 |
| Mandrel Dia mm | 2.7 |
| Head Dia mm | 4.8 |
| Collar Dia mm | 14 |
| Drill Hole Dia mm | 4.9 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Flange |
| Material | Aluminium |
| Substrates | Steel, Aluminium, Hard Plastic, PVCu |
Attribute Group 1
| Brand | TIMCO |

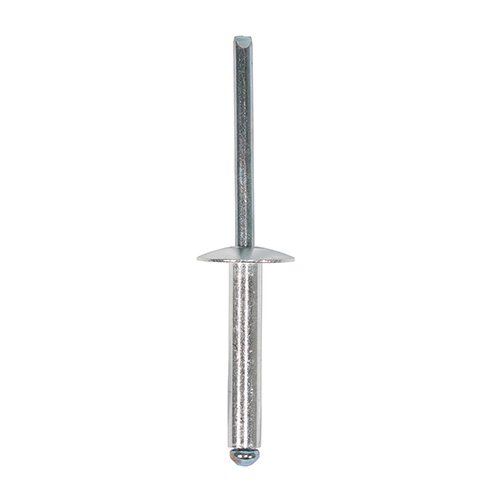

Rivets - Flange Head - Aluminium
4.8 x 25
- Product Code: 748264
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5056110829173
