Product Information
Ideal for sheet to sheet applications where welding and bolting is not possible. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The aluminium body ensures consistent performance and an enhanced resistance to corrosion.
- Aluminium body for an enhanced resistance to corrosion
Documents
Technical Specifications
Product Specification
| Collar Thickness mm | 0.8 |
| Head Length mm | 10 |
| Mandrel Length mm | 27 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Max Grip Range mm | 7.5 |
| Min Grip Range mm | 5.5 |
| Pack Dimensions L x W x H mm | 120 x 118 x 58 |
| Pack Weight kg | 0.54 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | 720 |
| DIN Standard | DIN 7337 |
| Product Code | 748852 |
| SKU Barcode | 5056110829012 |
| Size Head Dia x L mm | 3.2 x 10 |
| Mandrel Dia mm | 1.75 |
| Head Dia mm | 3.2 |
| Collar Dia mm | 6.5 |
| Drill Hole Dia mm | 3.3 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Head Type | Dome |
| Material | Aluminium |
| Substrates | Steel, Aluminium, Hard Plastic, PVCu |
Attribute Group 1
| Brand | TIMCO |

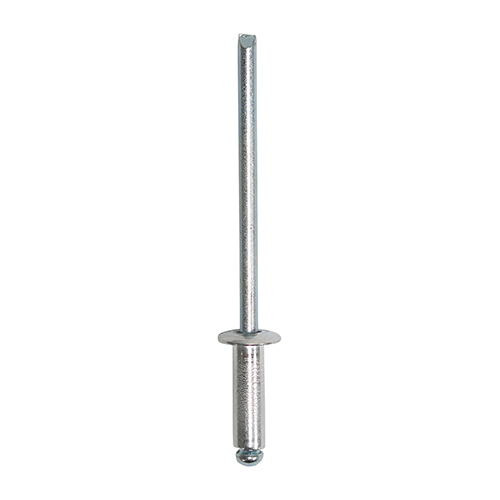

Rivets - Dome Head - Aluminium
3.2 x 10
- Product Code: 748852
- Pack Type: Box
- Pack Quantity: 500
- Barcode: 5056110829012
