Product Information
Ideal for sheet to sheet applications where welding and bolting is not possible. During installation the head forms a secure fixing whilst maintaining an aesthetic and low profile finish. The A2 stainless steel body ensures consistent performance and ultimate resistance to corrosion. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
- A2 stainless steel body for ultimate resistance to corrosion
Documents
Technical Specifications
Product Specification
| Collar Thickness mm | 1 |
| Head Length mm | 12 |
| Mandrel Length mm | 27 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Grip Range mm | 8.5 |
| Min Grip Range mm | 6.5 |
| Pack Dimensions L x W x H mm | 120 x 114 x 58 |
| Pack Weight kg | 0.72 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | 720 |
| DIN Standard | DIN 7337 |
| Product Code | 748531 |
| SKU Barcode | 5056110829111 |
| Size Head Dia x L mm | 4.0 x 12 |
| Mandrel Dia mm | 2.45 |
| Head Dia mm | 4 |
| Collar Dia mm | 8 |
| Drill Hole Dia mm | 4.1 |
Product Specifications
| Head Type | Dome |
| Material | Austenitic Stainless Steel (A2-304) |
| Substrates | Steel, Aluminium, Stainless Steel, Hard Plastic, PVCu, Corrosive Wood (e.g. Oak, Cedar) |
Attribute Group 1
| Brand | TIMCO |

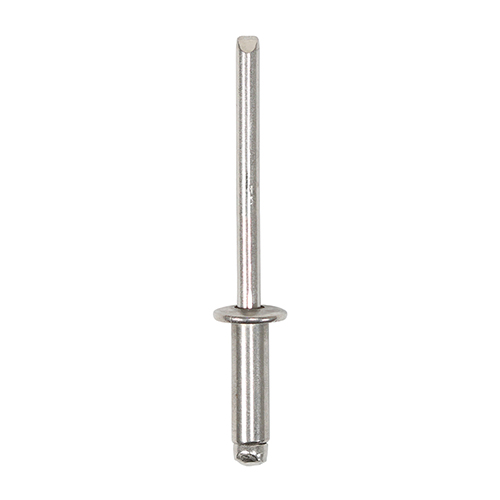

Rivets - Dome Head - A2 Stainless Steel
4.0 x 12
- Product Code: 748531
- Pack Type: Box
- Pack Quantity: 250
- Barcode: 5056110829111
