Product Information
Designed for uneven floor surfaces or obstructions such as deep pile carpets.
- Spiral knuckle lifts the door throughout the opening cycle
- Quick and easy removal of doors
- Self-closing design
- Available in left and right handed opening
- Manufactured from steel available in zinc and electro brass finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 72 |
| Screw Size mm | 4.0 x 30 |
| Size L x W mm | 75 x 72 |
| Thickness mm | 2.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 237 x 116 x 21 |
| Pack Weight kg | 0.35 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 466 |
| Product Code | 434910P |
| SKU Barcode | 5056110884820 |
| Size imp | 3 |
| Screw Size imp | 8 x 1 1/4 |
| Knuckle Dia mm | 14 |
| Hole Dia mm | 4.6 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

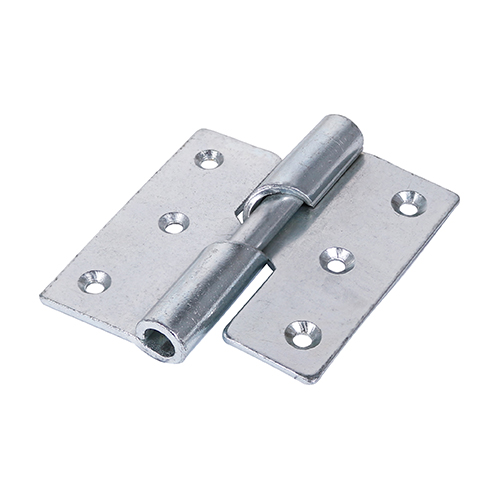

Rising Butt Hinge (466) - Left Hand - Zinc
75 x 72
- Product Code: 434910P

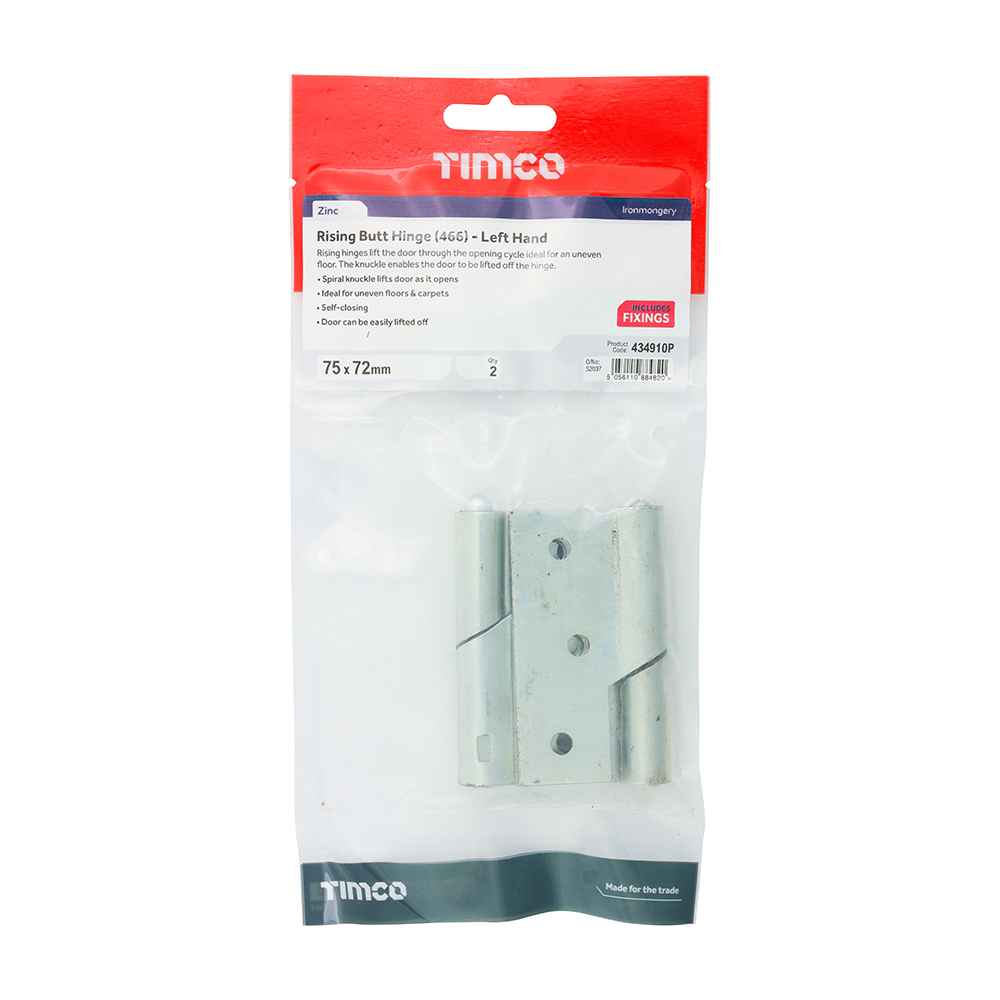

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110884820
