Product Information
An ideal medium security lock for shed and internal doors. It is reversible for both left and right hand hung doors and is key operational from both sides. Use with rim knob sets to operate the latch. Fixings not included.
- Supplied with keep for both inward and outward opening doors and 2 keys
Documents
Technical Specifications
Product Specification
| Backset mm | 105 |
| Bolt Throw mm | 13.5 |
| Keep Size H x W mm | 75 x 23 |
| Lock Case Size H x D mm | 143 x 83 |
| Lock Follower Backset mm | 43 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 162 x 96 x 30 |
| Pack Weight kg | 0.54 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | RSLB |
| SKU Barcode | 5055893379066 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | Keys (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

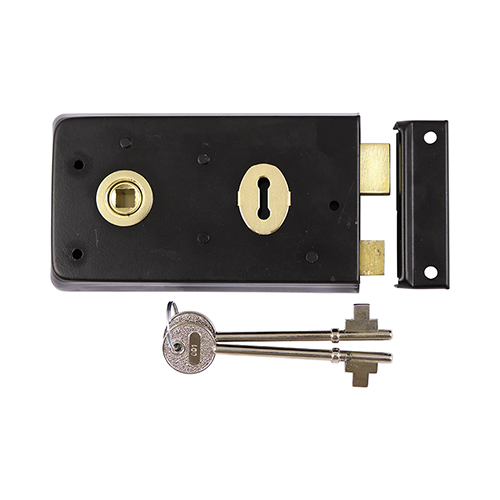

Rim Sash Lock - Inward and Outward Keep - Black
143 x 83mm
- Product Code: RSLB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893379066
