Product Information
An ideal medium security lock for sheds and internal doors. It is reversible for both left and right hand hung doors and is key operation from both sides. Fixings not included.
- Use with rim knob sets to operate the latch
- Supplied with 2 keys
Documents
Technical Specifications
Product Specification
| Backset mm | 105 |
| Bolt Throw mm | 13.5 |
| Keep Size H x W mm | 92 x 24 |
| Lock Case Size H x D mm | 156 x 106 |
| Lock Follower Backset mm | 43 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 162 x 96 x 30 |
| Pack Weight kg | 0.57 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | RSLFB |
| SKU Barcode | 5055893379059 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | Keys (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

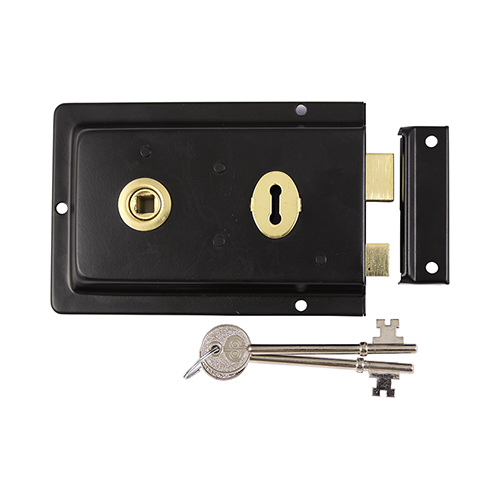

Rim Sash Lock Fluted - Black
156 x 106mm
- Product Code: RSLFB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893379059
