Product Information
An ideal medium security lock for shed and internal doors. It is reversible for both left and right hand hung doors and is key operational from both sides. Fixings included.
- Supplied with 2 keys
Documents
Technical Specifications
Product Specification
| Bolt Throw mm | 13.5 |
| Keep Size H x W mm | 75 x 23 |
| Lock Case Size H x D mm | 106 x 74 |
| Lock Follower Backset mm | 43 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| No of Pan Screws | 5 |
| Pan Screw Size mm | 4.0 x 50 |
| Pack Dimensions L x W x H mm | 20 x 160 x 290 |
| Pack Weight kg | 0.41 |
| Carton Qty Packs | 5 |
| Pallet Qty Packs | N/A |
| Product Code | 427124 |
| SKU Barcode | 5055893393154 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | 4.0 x 50mm Pan Screws (Qty 5) |
Attribute Group 1
| Brand | TIMCO |

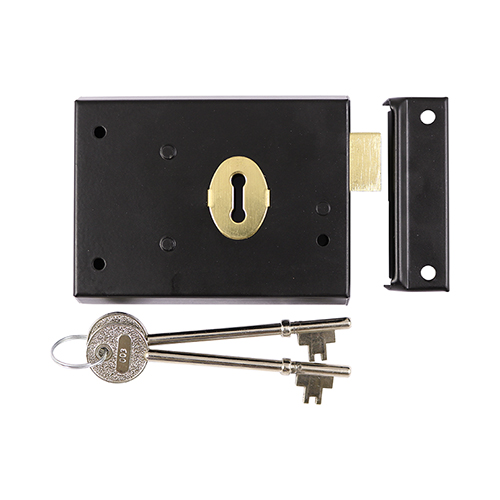

Rim Deadlock - Black
106 x 74mm
- Product Code: 427124
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893393154
