Product Information
Generally used for horizontal restraint such as roof trusses, rafters and joists tied to masonry. Designed to The Building Regulations BS 5268 Part 3 and other building standards for horizontal restraint. Manufactured from galvanised steel to give a high level of corrosion resistance.
Documents
Technical Specifications
Product Specification
| Length mm | 1000 |
| Thickness mm | 4 |
| Total Length mm | 1000 |
| Width mm | 27.5 |
| Screw Holes 6.0mm | 40 |
| Type | Heavy Duty - Flat |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 1000 x 40 x 4 |
| Pack Weight kg | 0.8 |
| Carton Qty Packs | 50 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 1000FRSH |
| SKU Barcode | 5022456321411 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

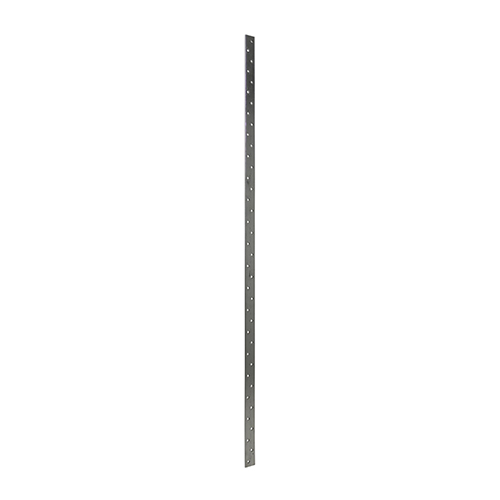

Restraint Straps - Heavy Duty - Flat - Galvanised
1000mm
- Product Code: 1000FRSH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321411
