Product Information
Lightweight design makes it easy to handle, yet retains its structural strength so it can be used instead of traditional heavy duty straps in both horizontal and vertical applications. Designed to The Building Regulations BS 5268 Part 3 and other building standards for horizontal restraint. Manufactured from Galvanised Steel to give a high level of corrosion resistance.
Documents
Technical Specifications
Product Specification
| Bend mm | 100 |
| Length mm | 1100 |
| Thickness mm | 1.4 |
| Total Length mm | 1200 |
| Width mm | 36 |
| Screw Holes 6.0mm | 20 |
| Type | Heavy Duty Engineered |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 1100 x 40 x 100 |
| Pack Weight kg | 0.47 |
| Carton Qty Packs | 50 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 1200ERSH |
| SKU Barcode | 5022456321787 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

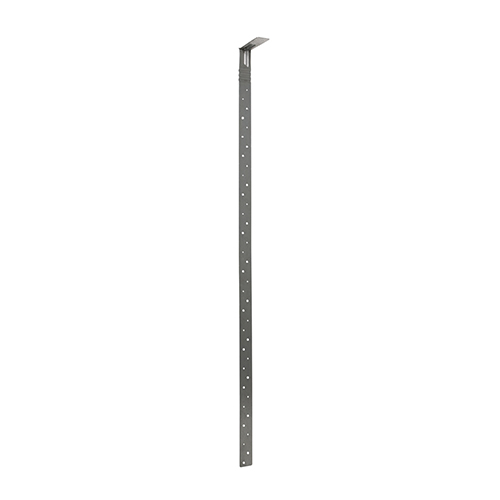

Restraint Straps - Heavy Duty - Engineered - Galvanised
1100/100
- Product Code: 1200ERSH
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321787
