Product Information
Generally used for horizontal restraint such as roof trusses, rafters and joists tied to masonry. Designed to The Building Regulations BS 5268 Part 3 and other building standards for horizontal restraint. Manufactured from galvanised steel to give a high level of corrosion resistance.
Documents
Technical Specifications
Product Specification
| Bend mm | 100 |
| Length mm | 1500 |
| Thickness mm | 4 |
| Total Length mm | 1600 |
| Width mm | 36 |
| Screw Holes 6.0mm | 64 |
| Type | Heavy Duty - Bent |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 1500 x 40 x 100 |
| Pack Weight kg | 1.27 |
| Carton Qty Packs | 50 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 1600BRSH100 |
| SKU Barcode | 5022456321398 |
Product Specifications
| Finish | Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

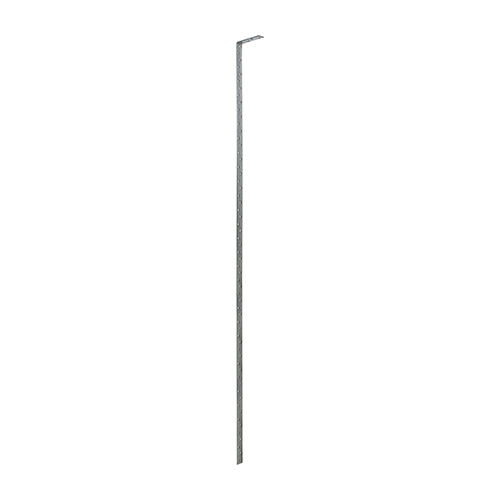

Restraint Straps - Heavy Duty - Bent - Galvanised
1500/100
- Product Code: 1600BRSH100
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456321398
