Product Information
Generally used for horizontal restraint such as roof trusses, rafters and joists tied to masonry. Designed to The Building Regulations BS 5268 Part 3 and other building standards for horizontal restraint. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.
Documents
Technical Specifications
Product Specification
| Bend mm | 100 |
| Length mm | 900 |
| Thickness mm | 4 |
| Total Length mm | 1000 |
| Width mm | 27.5 |
| Screw Holes 6.0mm | 40 |
| Type | Heavy Duty - Bent |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 900 x 40 x 100 |
| Pack Weight kg | 0.8 |
| Carton Qty Packs | 50 |
| CE Standard Web | BS EN 845-1:2013+A1:2016 |
| Product Code | 1000BRSHS |
| SKU Barcode | 5022456319999 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |

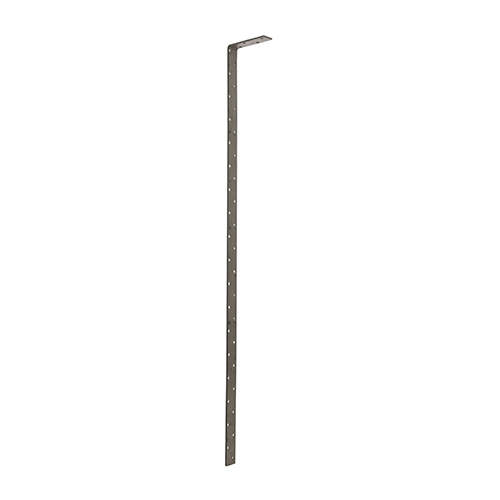

Restraint Straps - Heavy Duty - Bent - A2 Stainless Steel
900/100
- Product Code: 1000BRSHS
- Pack Type: Unit
- Pack Quantity: 1
- Barcode: 5022456319999
