Product Information

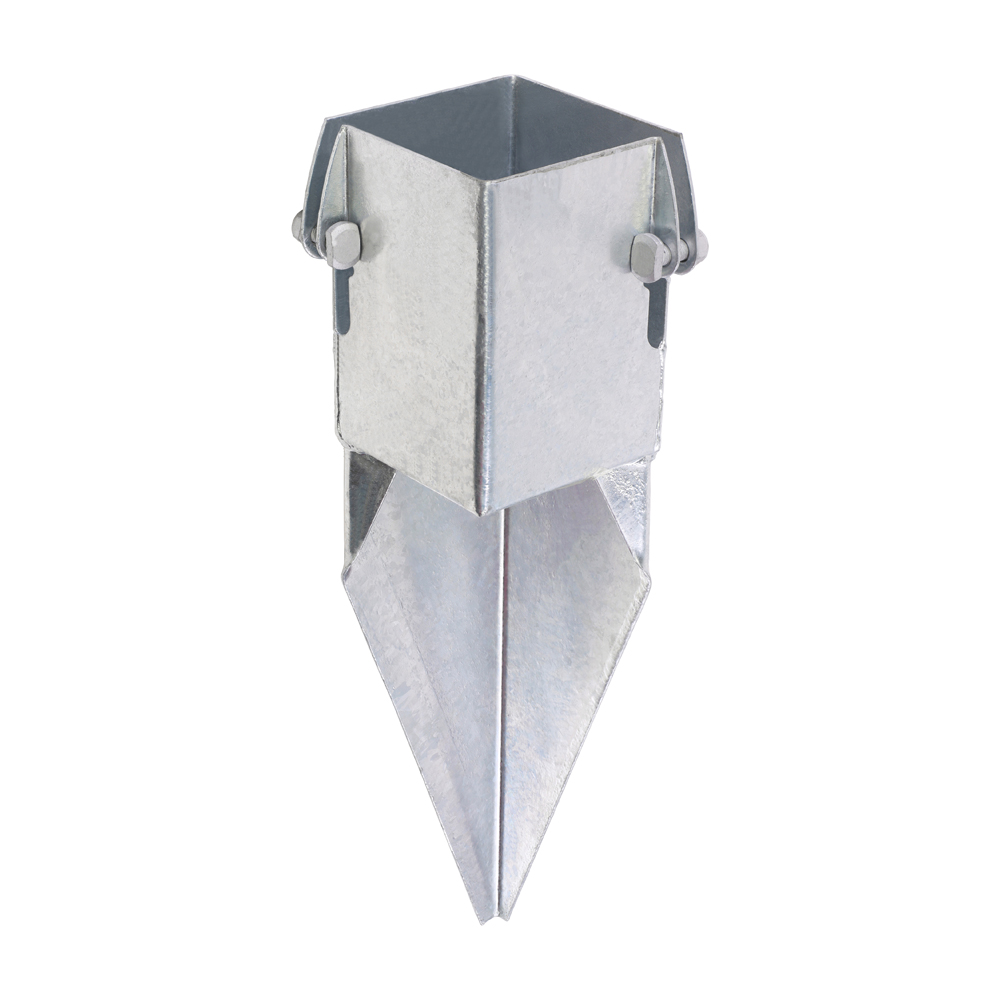

Repair spike fence post supports are designed for the repair and replacement of rotten or damaged fence posts that have been concreted in. The spike drives down between the existing wood post and concrete to leave a solid base for installation of a new post. The bolt secure version features 2x 8mm carriage bolts that tighten and clamp the post firmly into the post holder section to prevent any post movement as well as allowing for over / under sized post tolerance. This system also allows for removal of the post at a later stage if required.
  • Hot dipped galvanised for maximum rust protection
  • Can be painted over
Documents
Technical Specifications
Product Specification
Carriage Bolt Size mm M8 x 35
Nut Size mm M8
Post Holder Length mm 150
Spike Length inch 12
Spike Length mm 300
Total Length mm 450
Type Bolt Secure
No of Nuts 2
No of Carriage Bolts 2
To Suit Post Size inch 4 x 4
To Suit Post Size mm 100 x 100
Pack Dimensions L x W x H mm 451 x 140 x 120
Pack Weight kg 1.85
Carton Qty Packs 10
Pallet Qty Packs 80
Offers Sale
Product Code RS100G
SKU Barcode 5055893382806
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Nylon - Type T
Included Items M8 x 35mm Carriage Bolts (Qty 2), M8 Nylon - Type T Nuts (Qty 2)
Attribute Group 1
Brand TIMCO

Repair Spike - Bolt Secure - Hot Dipped Galvanised

100mm

  • Product Code: RS100G
  • Pack Type: Unit
  • Pack Quantity: 1
  • Barcode: 5055893382806
