Product Information
Specifically designed for the fitting of brackets and clips during installation of PVCu rainwater systems. When fixing into brick a red (5.5mm) plug is required.
- Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
- 40° deep single thread to provide a secure fixing with high pull-out resistance
- Corrosion resistant coating to withstand 1,000 hours salt spray
- For fixing gutters, downpipes & rainwater systems
Documents
Technical Specifications
Product Specifications
| Gauge | 8 |
| Colour | White |
| Finish | Exterior (White Organic) |
| Head Type | Low Profile Pan |
| Material | Carbon Steel |
| Point Type | 25° Sharp with Single Slash |
| Recess Type | Pozi |
| Thread Type | Single Coarse 40° |
| Driver Bit Size | PZ2 |
| Included Items | PZ2 S2 Bit (Qty 1) |
| Substrates | Plastic, Timber, Man-Made Board, Masonry (with plug) |
Product Specification
| Length inch | 1 1/2 |
| Length mm | 40 |
| Diameter mm | 4 |
| Size mm | 4.0 x 40 |
| Thread Length mm | 35 |
| Corrosion Rating | 3 - Urban & industrial areas with a low salt atmosphere |
| Pack Dimensions L x W x H mm | 138 x 94 x 62 |
| Pack Weight kg | 0.74 |
| Carton Qty Packs | 15 |
| Pallet Qty Packs | 540 |
| Product Code | 40040CLARWBX |
| SKU Barcode | 5056601904983 |
| Size imp | 8 x 1'1/2 |
| Thread Dia mm | 4 |
Attribute Group 1
| Brand | TIMCO |

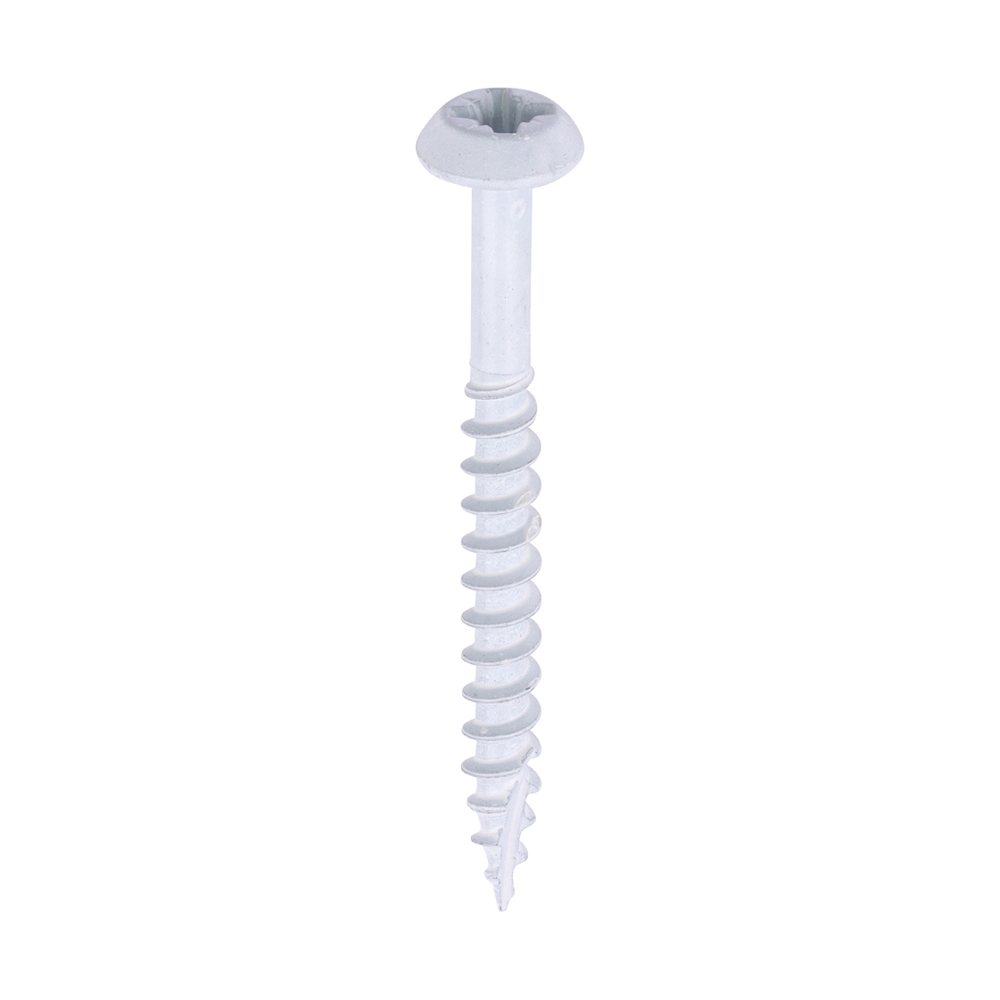

Rainwater Screws - PZ - Low Profile Pan - Exterior - White
4.0 x 40
- Product Code: 40040CLARWBX

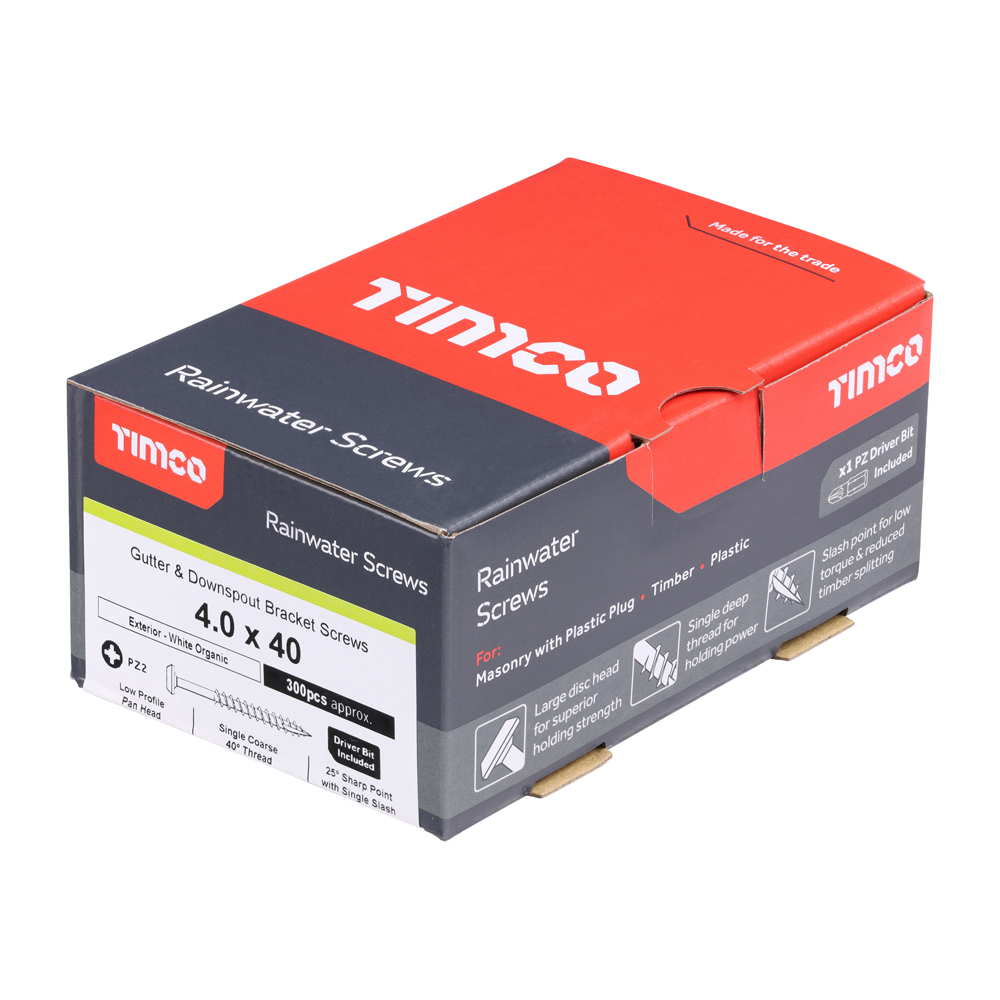

- Pack Type: Box
- Pack Quantity: 300
- Barcode: 5056601904983
