Product Information
Designed for easy installation, simply drill hole and push to fit, no chisel required. Suitable for use in conjunction with bathroom bolts.
- Quick fit design
- Fits circular hole
- Follower is suitable for a 5mm square spindle
- Bolt through facility
- Tested to 50,000 cycles
- Fixings included
Documents
Technical Specifications
Product Specification
| Backset mm | 45 |
| Height mm | 27 |
| Length mm | 64 |
| Diameter mm | 27 |
| Projection mm | 16 |
| Size inch | 2.5 |
| Size mm | 64 / 45 |
| Strike Plate Depth mm | 17 |
| Strike Plate Dia mm | 32 |
| Width mm | 27 |
| Pack Dimensions L x W x H mm | 96 x 79 x 30 |
| Pack Weight kg | 0.138 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | N/A |
| Product Code | 200378 |
| SKU Barcode | 5056601904839 |
Product Specifications
| Finish | Nickel |
| Material | Zinc |
Attribute Group 1
| Brand | TIMCO |

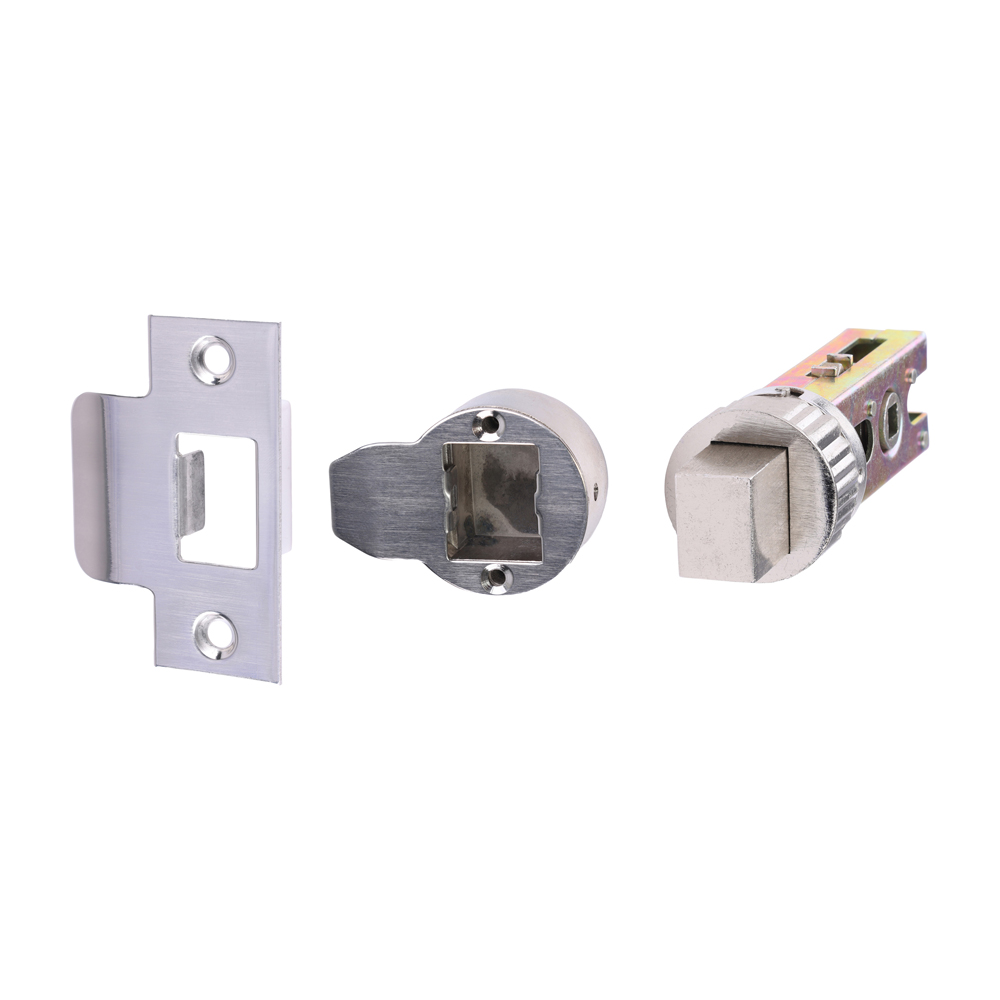

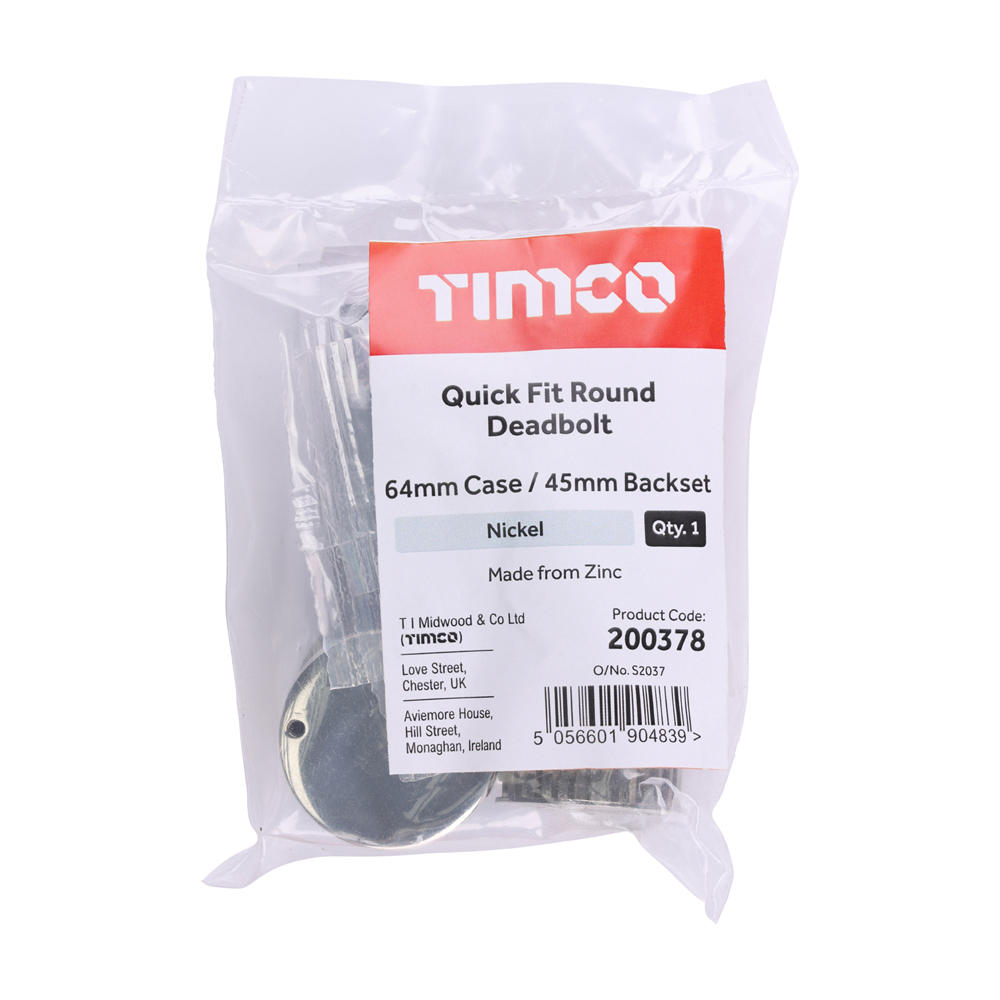

Quick Fit Round Deadbolt - Nickel
64 case / 45 backset
- Product Code: 200378
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056601904839
