Product Information
Designed for easy installation, simply drill hole and push to fit, no chisel required. Suitable for use in conjunction with bathroom bolts.
- Quick fit design
- Fits circular hole
- Follower is suitable for a 5mm square spindle
- Bolt through facility
- Tested to 50,000 cycles
- Fixings included
Documents
Technical Specifications
Product Specification
| Backset mm | 57 |
| Height mm | 27 |
| Length mm | 76 |
| Diameter mm | 27 |
| Projection mm | 16 |
| Size inch | 3 |
| Size mm | 76 / 57 |
| Strike Plate Depth mm | 17 |
| Strike Plate Dia mm | 32 |
| Width mm | 27 |
| Pack Dimensions L x W x H mm | 104 x 75 x 36 |
| Pack Weight kg | 0.146 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | N/A |
| Product Code | 200418 |
| SKU Barcode | 5056601904853 |
Product Specifications
| Finish | Nickel |
| Material | Zinc |
Attribute Group 1
| Brand | TIMCO |

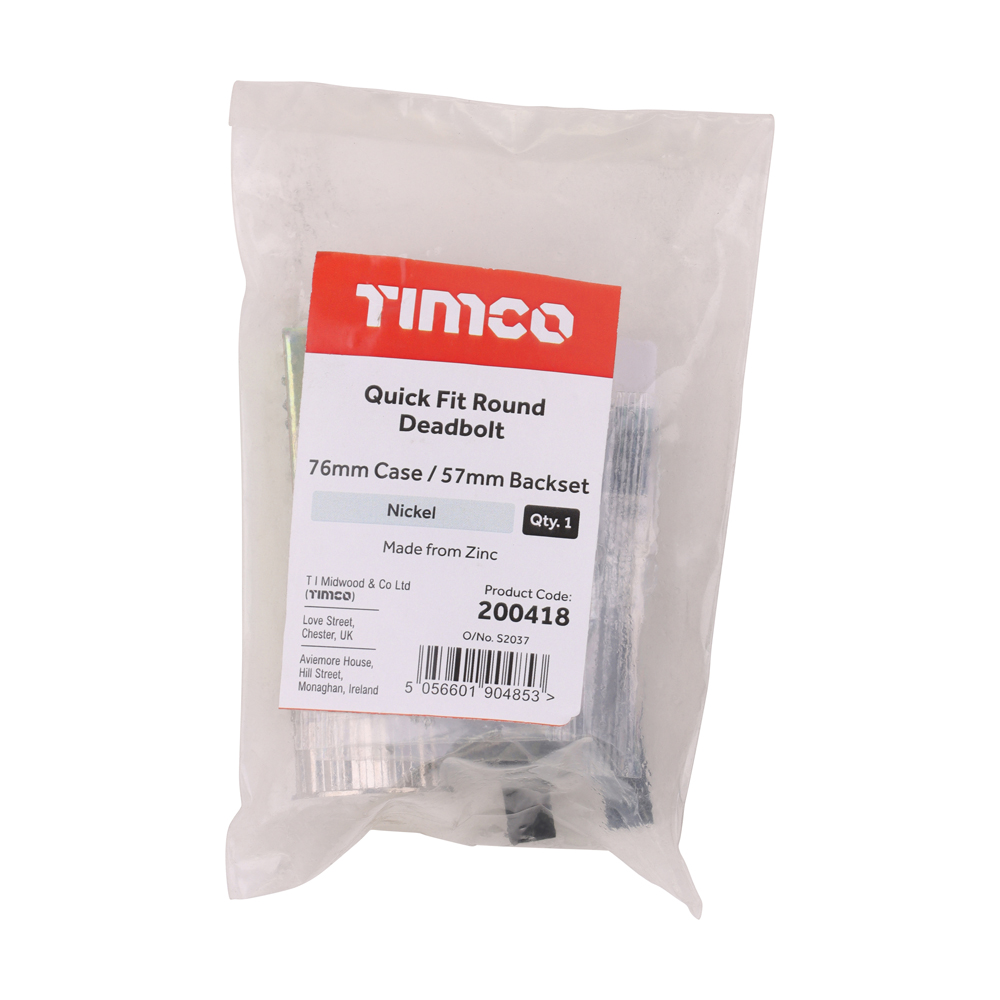

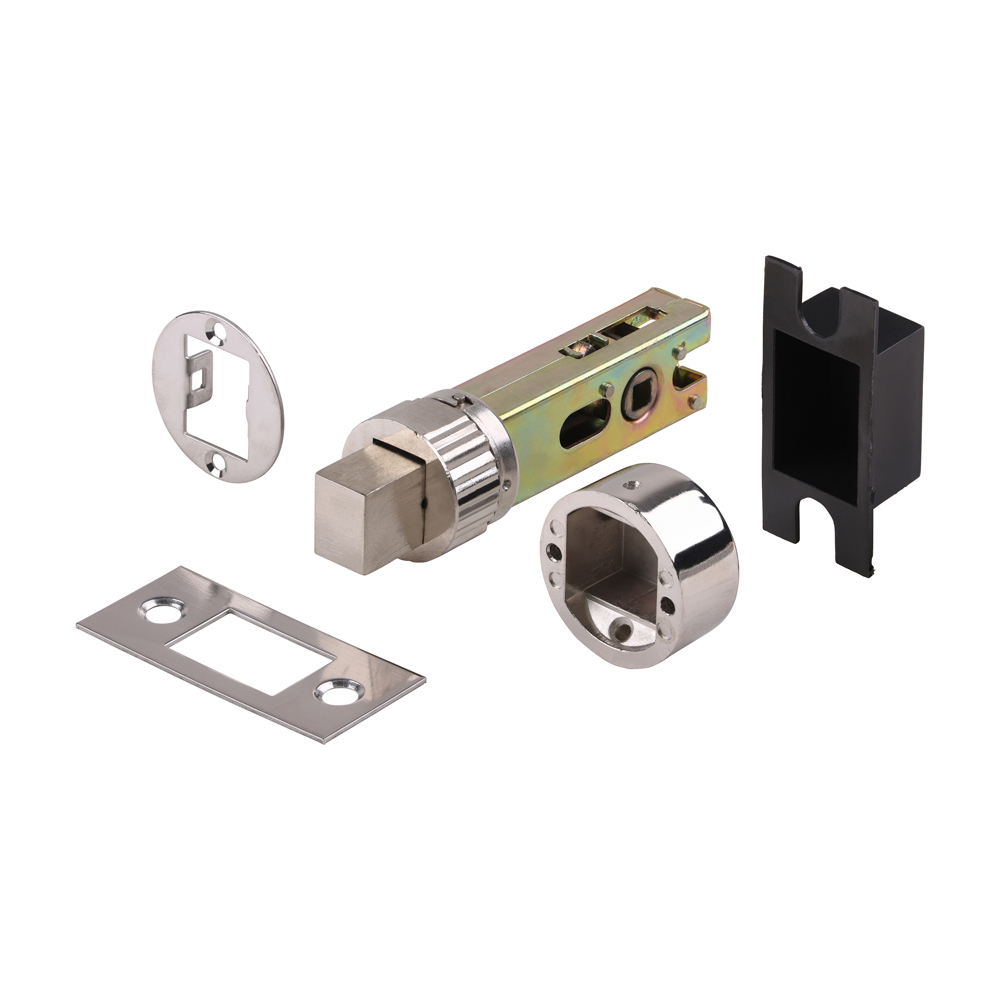

Quick Fit Round Deadbolt - Nickel
76 case / 57 backset
- Product Code: 200418
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056601904853
