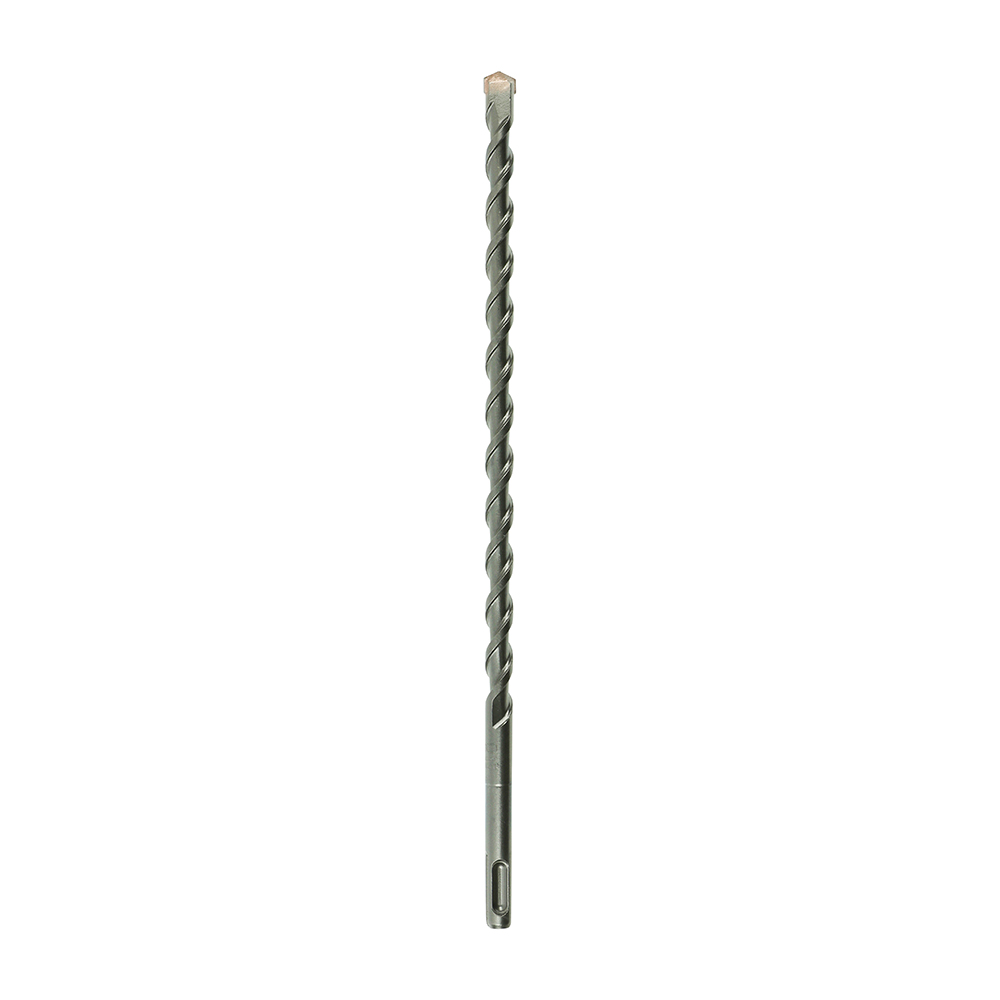

Product Information
A high performance drill bit with a superior carbide tip to give extended durability. German tested and PGM approved to ensure the bits drill with dimensional precision and performance when used in concrete and masonry. USER CAUTION: Rebar drilling will result in reduced tool life. All chisel tip SDS drills can shear if the tip snags the reinforcing whilst passing alongside.
  • Special nickel chromoly shank
  • High quality BC20 Tungsten Carbide tip
  • Cold formed blanks utilised up to 11mm diameter
  • Fully heat treated to eliminate bending
  • Twin flute design for increased drilling performance
  • Shot-peened for increased strength and durability
  • PGM approved and marked
  • Large range of sizes to cover most drilling applications, including direct fix anchors
Documents
Technical Specifications
Product Specification
Size mm 12.0 x 310
Total Length mm 310
Working Length mm 230
Drill Tip Tungsten Carbide
Shank Type SDS Plus
Pack Dimensions L x W x H mm 12 x 35 x 367
Pack Weight kg 0.138
Carton Qty Packs 20
Pallet Qty Packs N/A
Product Code AP12310
SKU Barcode 5055017546664
Drill Dia mm 12
Product Specifications
Material Nickel Chromoly
Substrates Concrete, Brick, Block, Stone
Approval PGM Marked
Attribute Group 1
Brand TIMCO

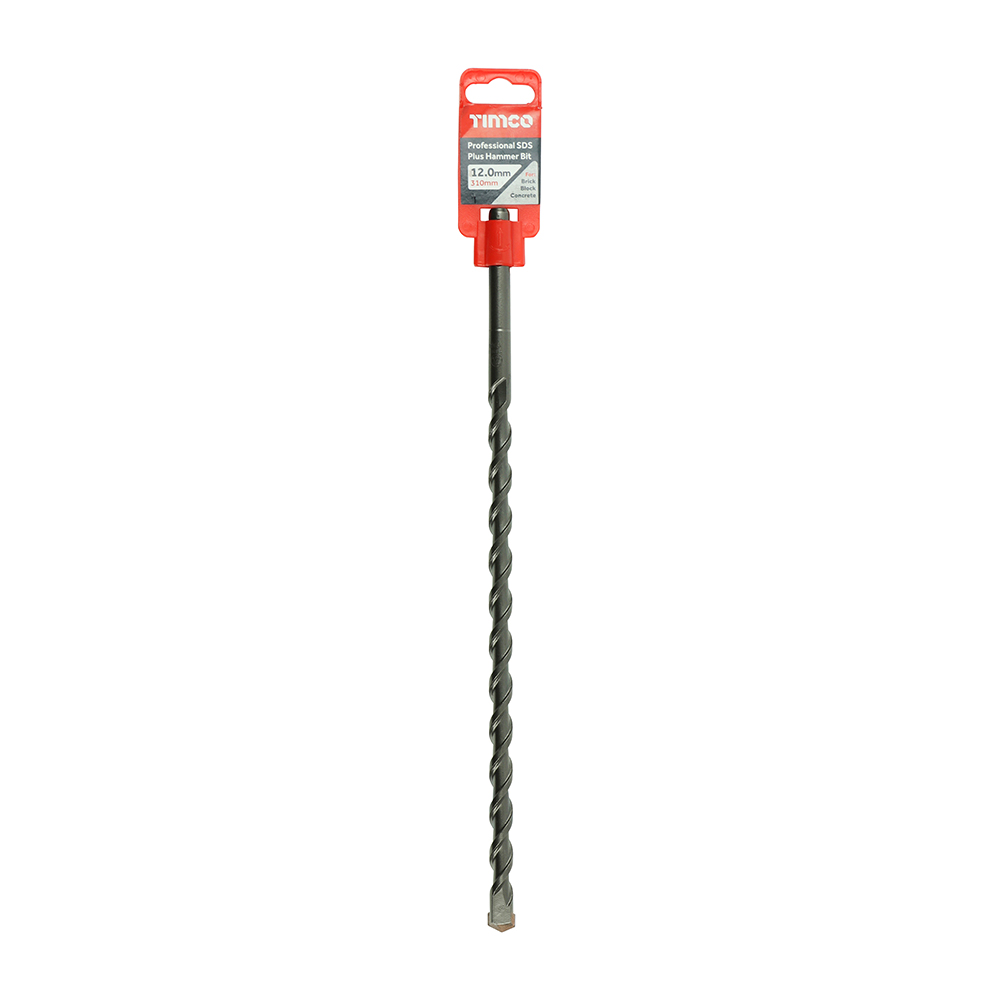

Professional SDS Plus Hammer Bit

12.0 x 310

  • Product Code: AP12310
  • Pack Type: Clip
  • Pack Quantity: 1
  • Barcode: 5055017546664
