Product Information
A high performance drill bit with a superior carbide tip to give extended durability. German tested and PGM approved to ensure the bits drill with dimensional precision and performance when used in concrete and masonry.
USER CAUTION: Rebar drilling will result in reduced tool life. All chisel tip SDS drills can shear if the tip snags the reinforcing whilst passing alongside.
- Special nickel chromoly shank
- High quality BC20 Tungsten Carbide tip
- Cold formed blanks utilised up to 11mm diameter
- Fully heat treated to eliminate bending
- Twin flute design for increased drilling performance
- Shot-peened for increased strength and durability
- PGM approved and marked
- Large range of sizes to cover most drilling applications, including direct fix anchors
Documents
Technical Specifications
Product Specification
| Size mm | 13.0 x 260 |
| Total Length mm | 260 |
| Working Length mm | 180 |
| Drill Tip | Tungsten Carbide |
| Shank Type | SDS Plus |
| Pack Dimensions L x W x H mm | 12 x 35 x 317 |
| Pack Weight kg | 0.13 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | AP13260 |
| SKU Barcode | 5055017546718 |
| Drill Dia mm | 13 |
Product Specifications
| Material | Nickel Chromoly |
| Substrates | Concrete, Brick, Block, Stone |
| Approval | PGM Marked |
Attribute Group 1
| Brand | TIMCO |

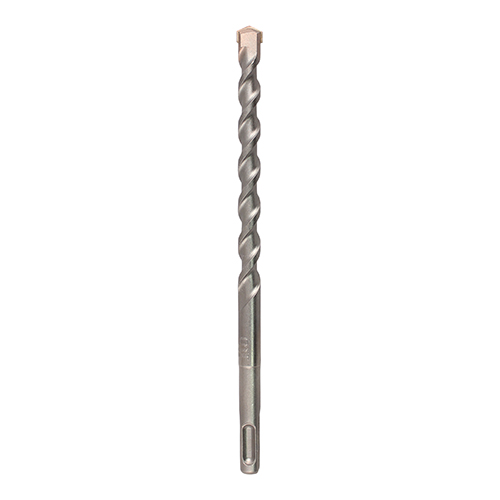

Professional SDS Plus Hammer Bit
13.0 x 260
- Product Code: AP13260
- Pack Type: Clip
- Pack Quantity: 1
- Barcode: 5055017546718
