Product Information
A high performance drill bit with a superior carbide tip to give extended durability. German tested and PGM approved to ensure the bits drill with dimensional precision and performance when used in concrete and masonry. USER CAUTION: Rebar drilling will result in reduced tool life. All chisel tip SDS drills can shear if the tip snags the reinforcing whilst passing alongside.
  • Special nickel chromoly shank
  • High quality BC20 Tungsten Carbide tip
  • Cold formed blanks utilised up to 11mm diameter
  • Fully heat treated to eliminate bending
  • Twin flute design for increased drilling performance
  • Shot-peened for increased strength and durability
  • PGM approved and marked
  • Large range of sizes to cover most drilling applications, including direct fix anchors
Documents
Technical Specifications
Product Specification
Size mm 16.0 x 450
Total Length mm 450
Working Length mm 370
Drill Tip Tungsten Carbide
Shank Type SDS Plus
Pack Dimensions L x W x H mm 12 x 35 x 507
Pack Weight kg 0.32
Carton Qty Packs 10
Pallet Qty Packs N/A
Product Code AP16450
SKU Barcode 5055017546893
Drill Dia mm 16
Product Specifications
Material Nickel Chromoly
Substrates Concrete, Brick, Block, Stone
Approval PGM Marked
Attribute Group 1
Brand TIMCO

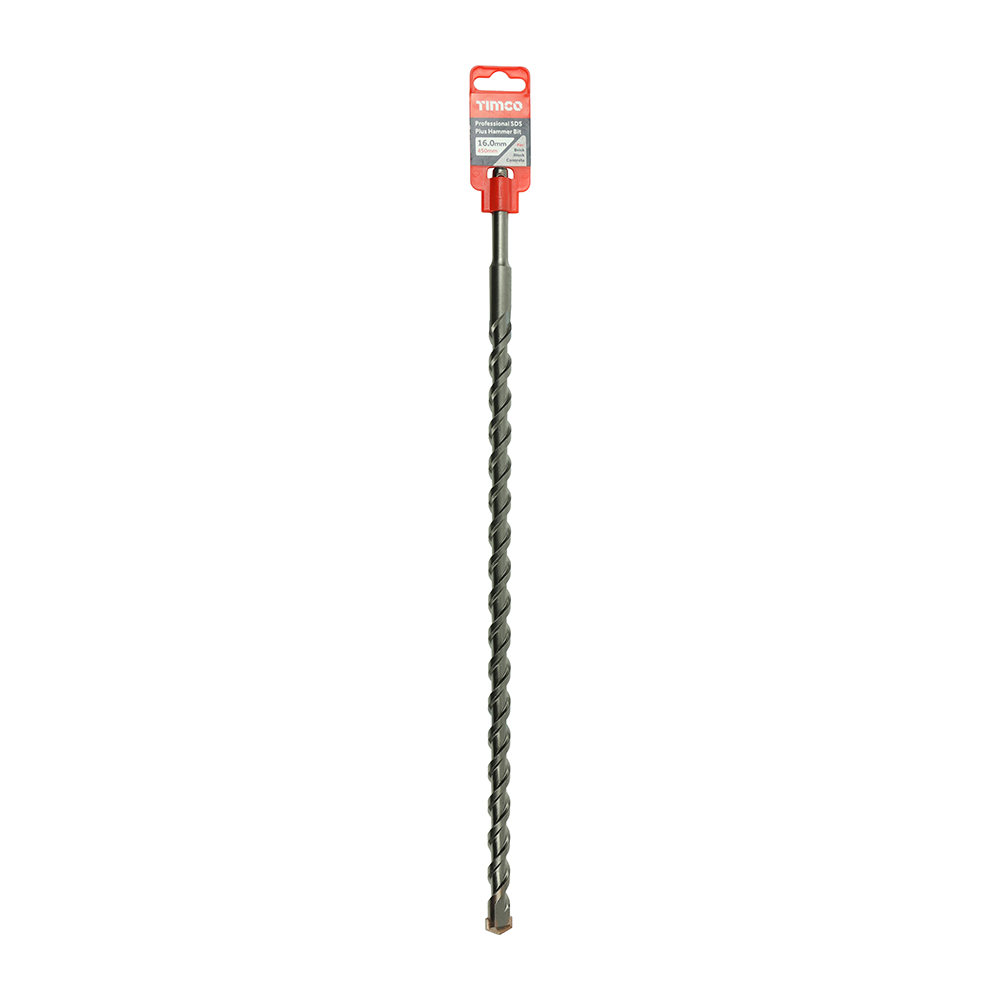

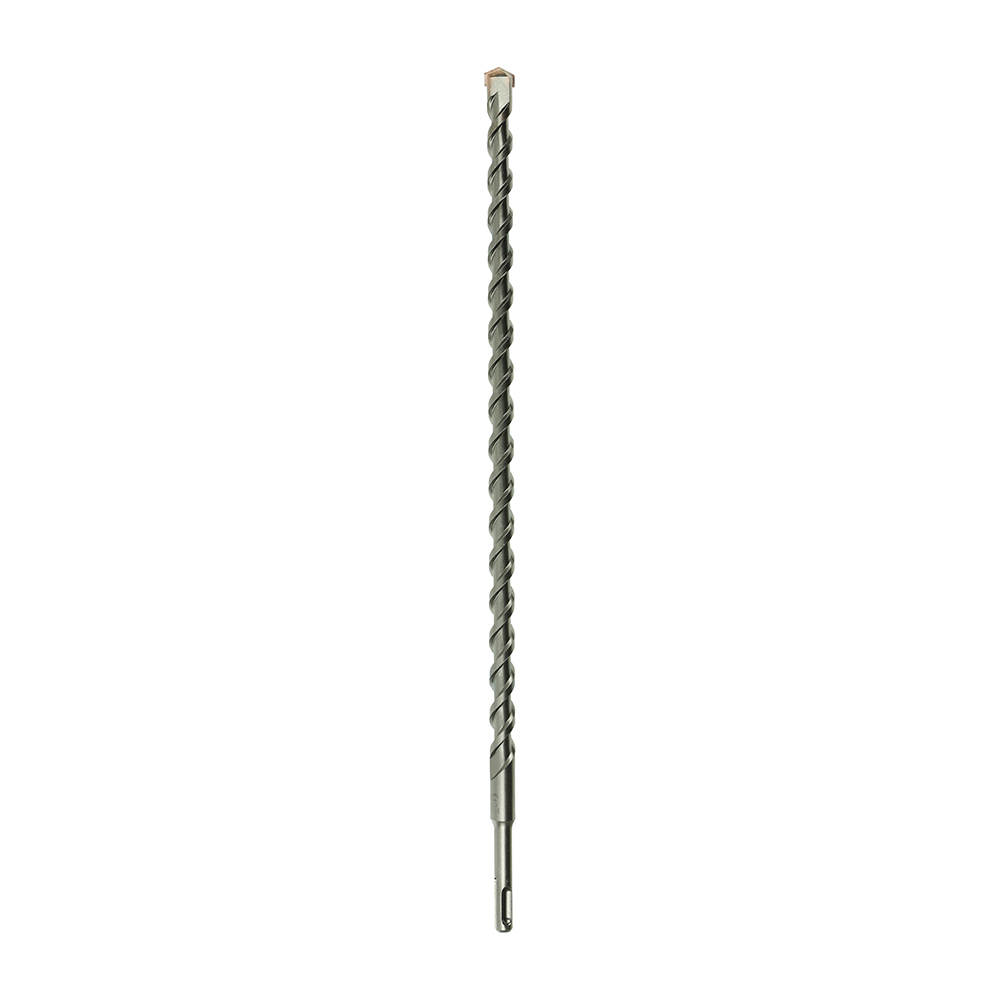

Professional SDS Plus Hammer Bit

16.0 x 450

  • Product Code: AP16450
  • Pack Type: Clip
  • Pack Quantity: 1
  • Barcode: 5055017546893
