Product Information
A high performance drill bit with a superior carbide tip to give extended durability. German tested and PGM approved to ensure the bits drill with dimensional precision and performance when used in concrete and masonry. USER CAUTION: Rebar drilling will result in reduced tool life. All chisel tip SDS drills can shear if the tip snags the reinforcing whilst passing alongside.
  • Special nickel chromoly shank
  • High quality BC20 Tungsten Carbide tip
  • Cold formed blanks utilised up to 11mm diameter
  • Fully heat treated to eliminate bending
  • Twin flute design for increased drilling performance
  • Shot-peened for increased strength and durability
  • PGM approved and marked
  • Large range of sizes to cover most drilling applications, including direct fix anchors
Documents
Technical Specifications
Product Specification
Size mm 7.0 x 260
Total Length mm 260
Working Length mm 190
Drill Tip Tungsten Carbide
Shank Type SDS Plus
Pack Dimensions L x W x H mm 12 x 35 x 317
Pack Weight kg 0.068
Carton Qty Packs 25
Pallet Qty Packs N/A
Offers Sale
Product Code AP7260
SKU Barcode 5055017596874
Drill Dia mm 7
Product Specifications
Material Nickel Chromoly
Substrates Concrete, Brick, Block, Stone
Approval PGM Marked
Attribute Group 1
Brand TIMCO

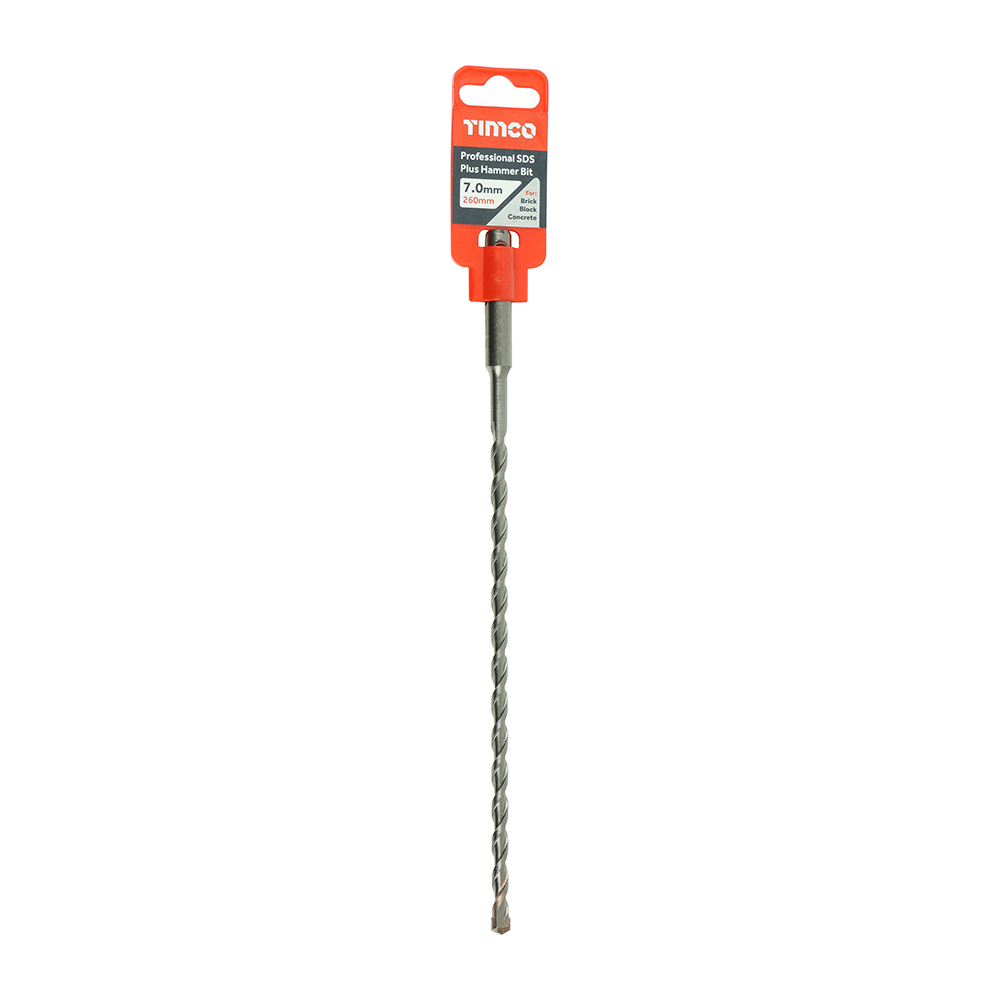

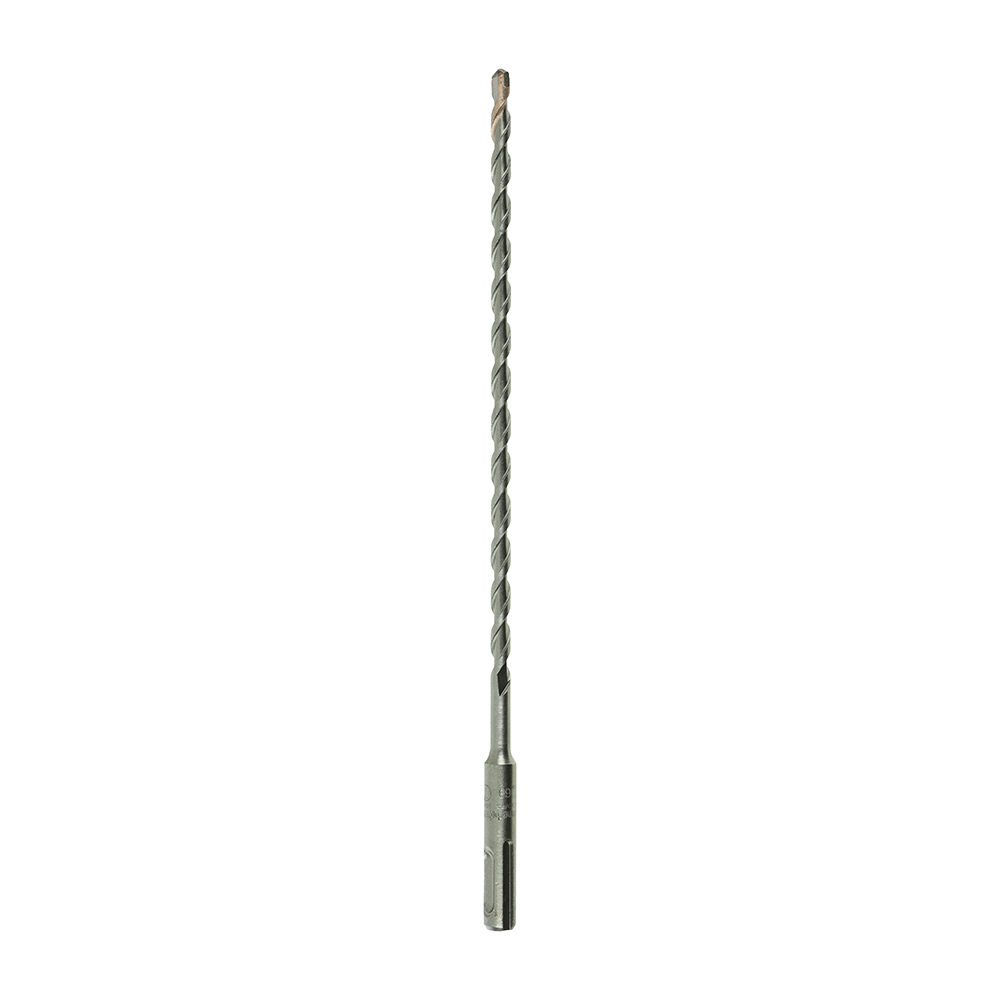

Professional SDS Plus Hammer Bit

7.0 x 260

  • Product Code: AP7260
  • Pack Type: Clip
  • Pack Quantity: 1
  • Barcode: 5055017596874
