Product Information

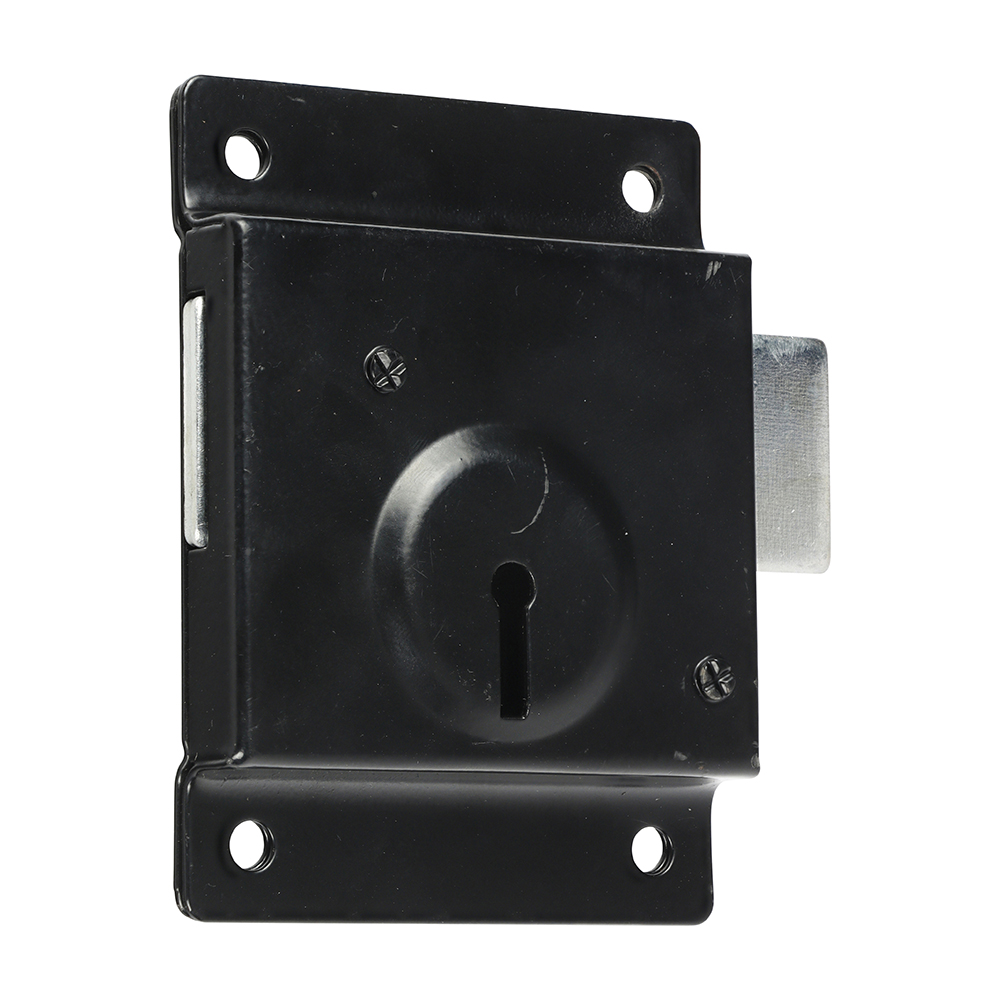

Press lock or shed lock, surface mounted for quick and easy installation. Bolt throughs across to engage on door frame, no keep required.

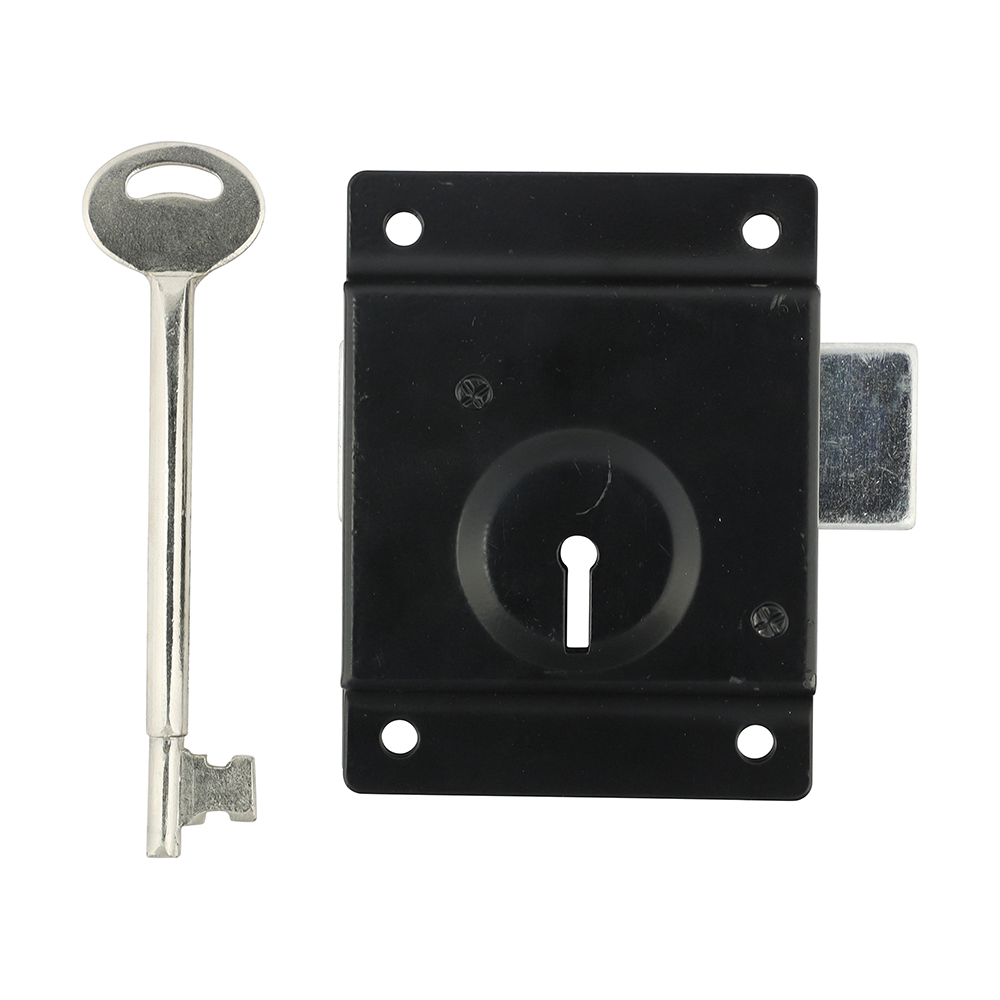

- Supplied with 2 extra long (115mm) keys
Documents
Technical Specifications
Product Specification
| Bolt Throw mm | 15 |
| Lock Case Size H x D mm | 100 x 76 |
| Lock Follower Backset mm | 40 |
| Size inch | 3 |
| Size mm | 76 |
| Key Qty | 2 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Pack Dimensions L x W x H mm | 120 x 103 x 25 |
| Pack Weight kg | 0.284 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | PL3LKB |
| SKU Barcode | 5056110884301 |
Product Specifications
| Finish | Epoxy Black |
| Material | Steel |
| Included Items | Extra Long Keys 115mm (Qty 2) |
Attribute Group 1
| Brand | TIMCO |

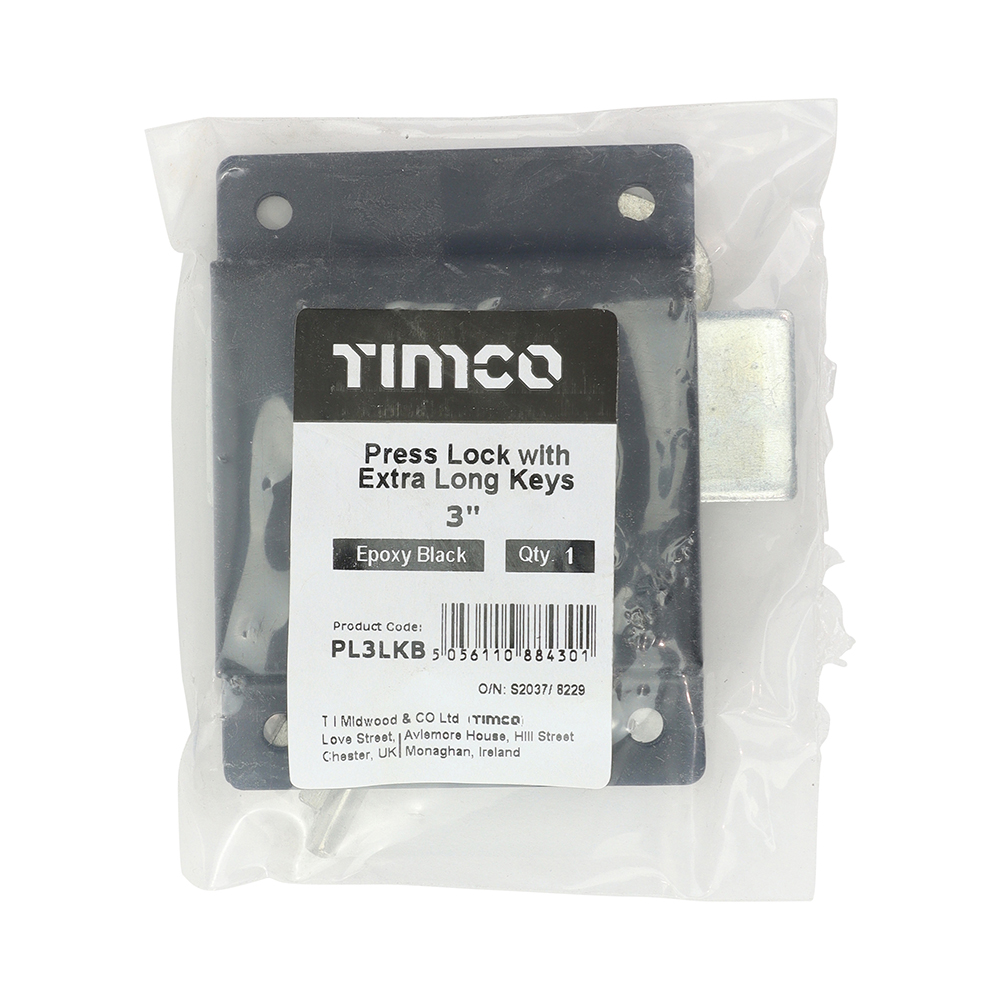

Press Lock with Extra Long Keys - Epoxy Black
3"
- Product Code: PL3LKB
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110884301
