Product Information
Large trade bags of premium plugs with improved pull-out loads and anti-rotation fins compared to standard plugs. Loose and off the sprig for quicker and more convenient installation on site. NOTE: It may be beneficial to reduce drill diameter in soft materials.
- Manufactured from a premium grade polymer
- Improved performance compared to standard plugs
- Anti-rotation fins to prevent spinning during installation and to prevent dropping out when overhead fixing
Documents
Technical Specifications
Product Specification
| Length mm | 34 |
| Diameter mm | 5.5 |
| Size mm | 5.5 x 34 |
| Min Drill Hole Depth mm | 39 |
| Rec Tensile Load kN | 0.18 |
| To Fit Screw Dia mm | 3.5 - 4.8 |
| Pack Dimensions L x W x H mm | 279 x 240 x 50 |
| Pack Weight kg | 0.56 |
| Carton Qty Packs | 30 |
| Pallet Qty Packs | 900 |
| Product Code | RPLUGPREM |
| SKU Barcode | 5055893353127 |
| Drill Hole Dia mm | 5.5 |
| To Fit Screw Gauge imp | 6 - 10 |
Product Specifications
| Colour | Red |
| Material | Plastic |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

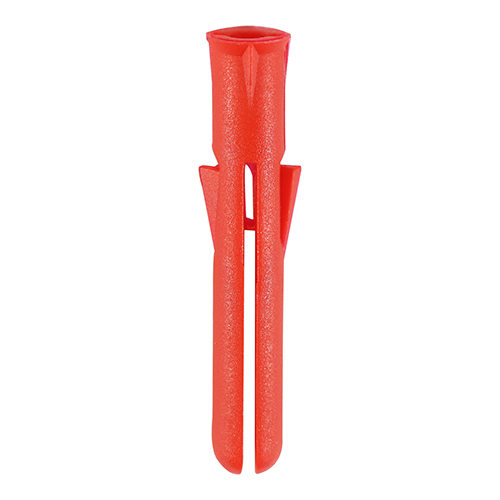

Premium Plastic Plugs - Red
34mm
- Product Code: RPLUGPREM

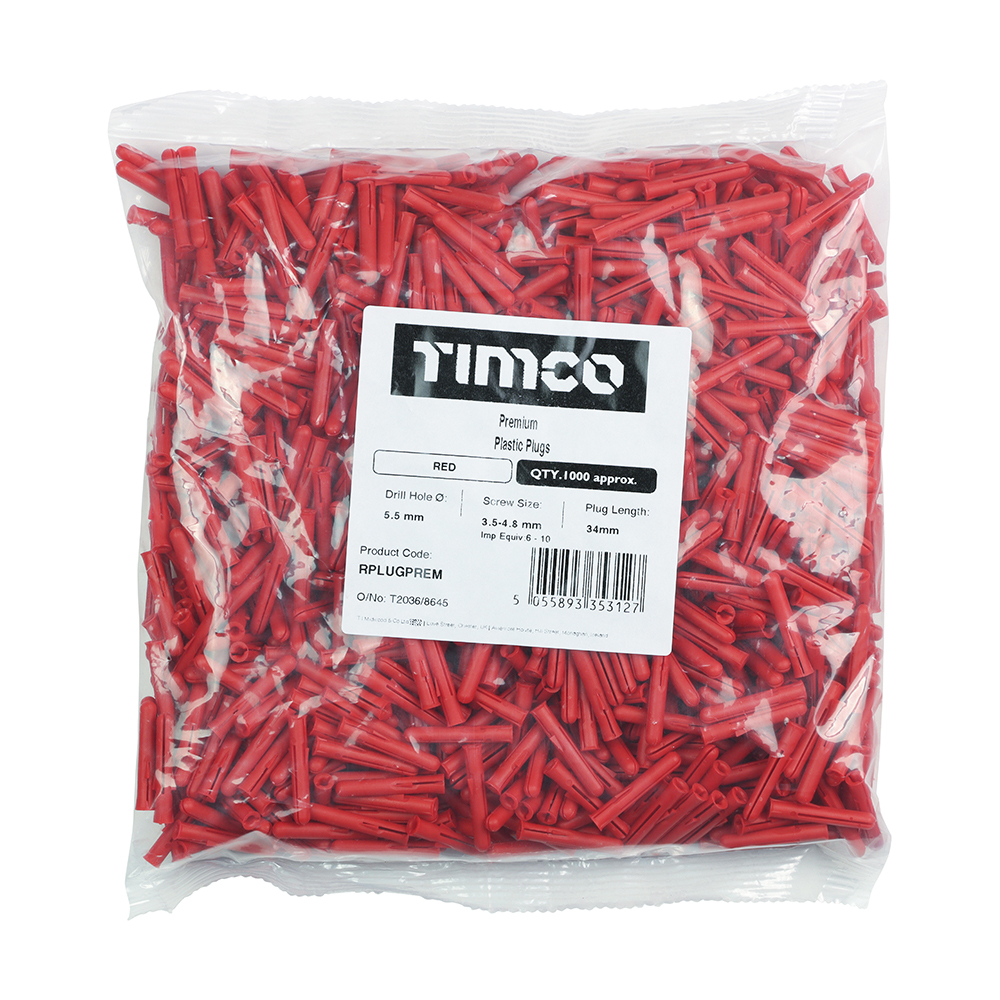

- Pack Type: Bag
- Pack Quantity: 1000
- Barcode: 5055893353127
