Product Information
Designed to anchor insulation material to concrete and masonry substrate materials. One piece impact resistant copolymer.
- Large diameter head
- Minimum embedment depth marker
Documents
Technical Specifications
Product Specification
| Length mm | 70 |
| Diameter mm | 8 |
| Max Fixture Thickness mm | 30 |
| Min Drill Hole Depth mm | 50 |
| Pack Dimensions L x W x H mm | 220 x 220 x 140 |
| Pack Weight kg | 0.36 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | 240 |
| Product Code | PIF70 |
| SKU Barcode | 5055331844965 |
| Size Dia x L mm | 8.0 x 70 |
| Head Dia mm | 35 |
| Drill Hole Dia mm | 8 |
Product Specifications
| Colour | White |
| Material | Plastic |
| Substrates | Concrete, Brick, Block |
Attribute Group 1
| Brand | TIMCO |

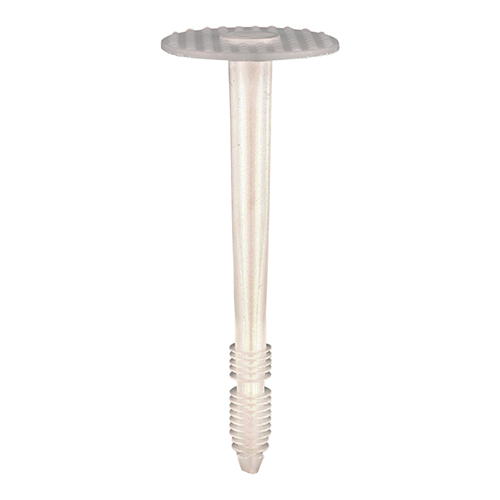

Plastic Insulation Fixings - White
8.0 x 70
- Product Code: PIF70
- Pack Type: Bag
- Pack Quantity: 100
- Barcode: 5055331844965
