Product Information

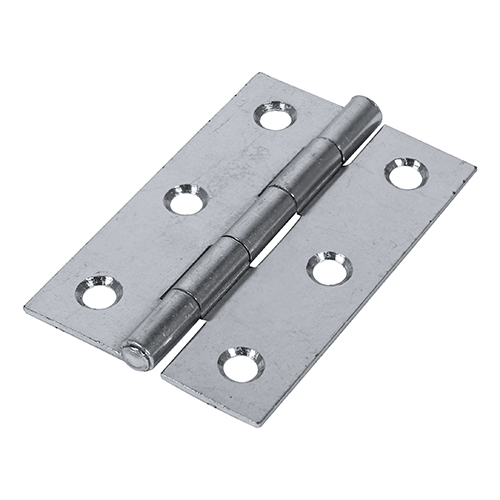

An economy hinge for a variety of uses.
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel with a variety of plating finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 50 |
| Size L x W mm | 75 x 50 |
| Thickness mm | 1.5 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 118 x 82 x 30 |
| Pack Weight kg | 1.14 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Pattern | 1838 |
| Product Code | 434886 |
| SKU Barcode | 5056110884554 |
| Size imp | 3 |
| Knuckle Dia mm | 7.3 |
| Hole Dia mm | 5.7 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |
Plain Butt Hinges - Fixed Pin (1838) - Zinc
75 x 50
- Product Code: 434886

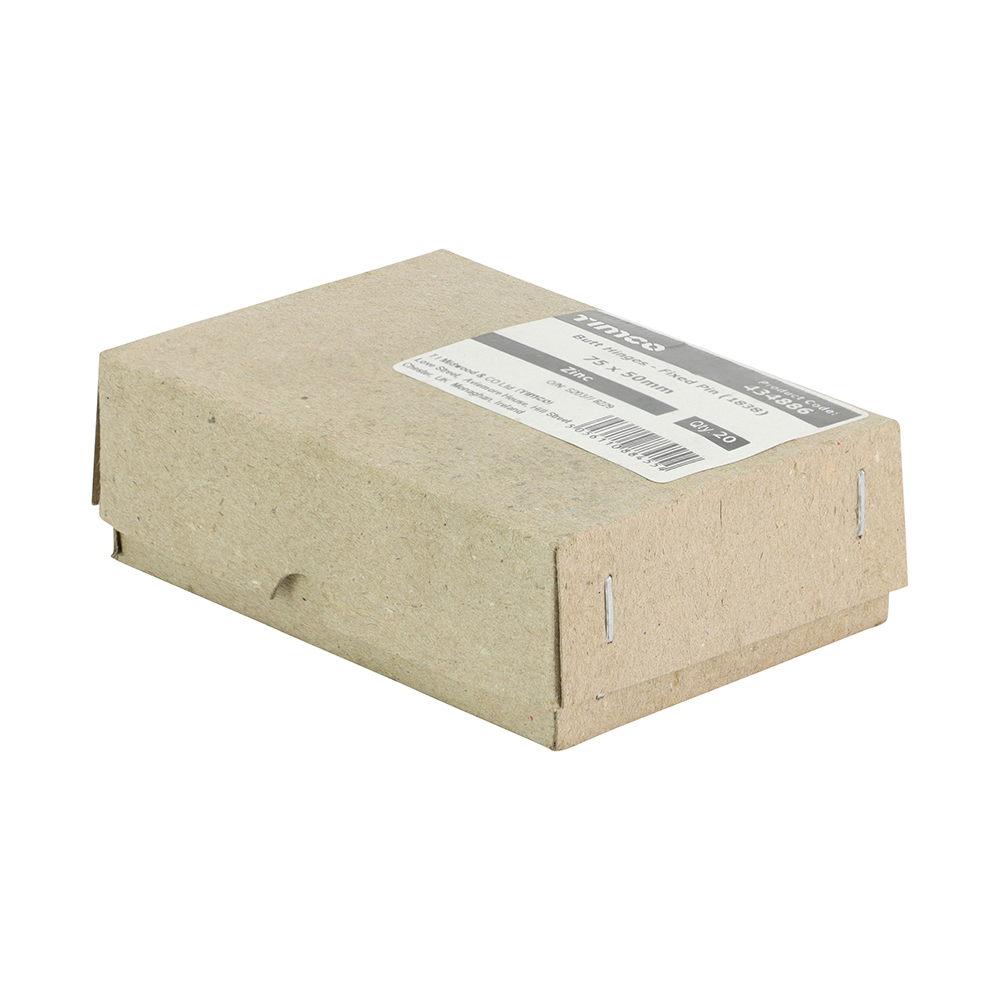

- Pack Type: Box
- Pack Quantity: 10
- Barcode: 5056110884554
