Product Information
An economy hinge for a variety of uses.
- Loose pin for easy door removal
- Recommended for internal doors
- Manufactured from steel with a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 100 |
| Open Width mm | 71 |
| Size L x W mm | 100 x 71 |
| Thickness mm | 1.7 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 16 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.2 |
| Carton Qty Packs | 60 |
| Pallet Qty Packs | 1,800 Pairs |
| Pattern | 1840 |
| Product Code | 434482 |
| SKU Barcode | 5056110808642 |
| Size imp | 4 |
| Knuckle Dia mm | 9.3 |
| Hole Dia mm | 6 |
| Rec Screw Dia mm | 4.5 |
Product Specifications
| Finish | Zinc |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

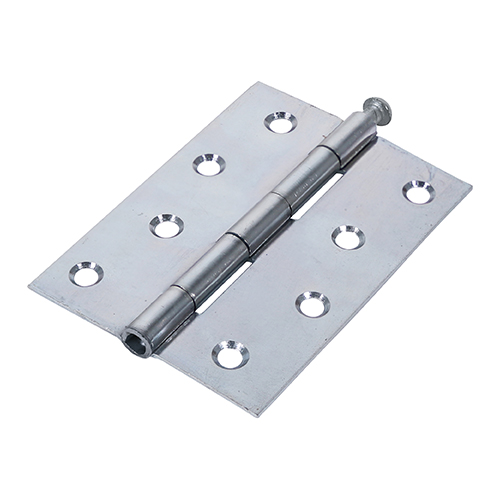

Plain Butt Hinge - Loose Pin (1840) - Zinc
100 x 71
- Product Code: 434482
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110808642
