Product Information
An economy hinge for a variety of uses.
- Loose pin for easy door removal
- Recommended for internal doors
- Manufactured from steel with a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 1/2 |
| Length mm | 90 |
| Open Width mm | 60 |
| Size L x W mm | 90 x 60 |
| Thickness mm | 1.7 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 12 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.4 |
| Carton Qty Packs | 50 |
| Pallet Qty Packs | 2,250 Pairs |
| Pattern | 1840 |
| Product Code | 434237 |
| SKU Barcode | 5056110808697 |
| Size imp | 3.5 |
| Knuckle Dia mm | 8.7 |
| Hole Dia mm | 6.2 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Polished Chrome |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

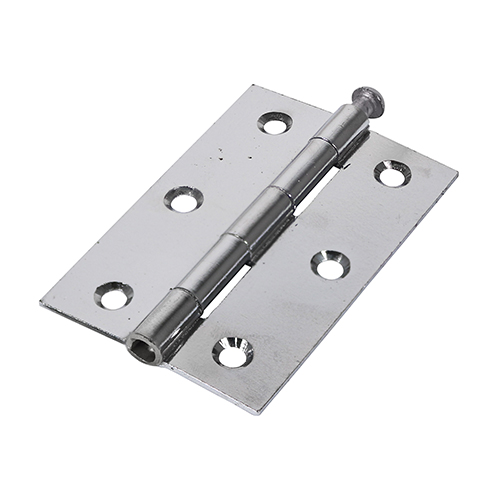

Plain Butt Hinge - Loose Pin (1840) - Polished Chrome
90 x 60
- Product Code: 434237
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110808697
