Product Information
An economy hinge for a variety of uses.
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel with a variety of plating finishes
Documents
Technical Specifications
Product Specification
| Length inch | 1 1/2 |
| Length mm | 38 |
| Open Width mm | 34 |
| Size L x W mm | 38 x 34 |
| Thickness mm | 1.2 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Screws Required Per Pair | 8 |
| Pack Dimensions L x W x H mm | 170 x 92 x 10 |
| Pack Weight kg | 0.04 |
| Carton Qty Packs | 200 |
| Pallet Qty Packs | 14,000 Pairs |
| Pattern | 1838 |
| Product Code | 434475 |
| SKU Barcode | 5056110808376 |
| Size imp | 1.5 |
| Knuckle Dia mm | 5.6 |
| Hole Dia mm | 4.3 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Self Colour |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

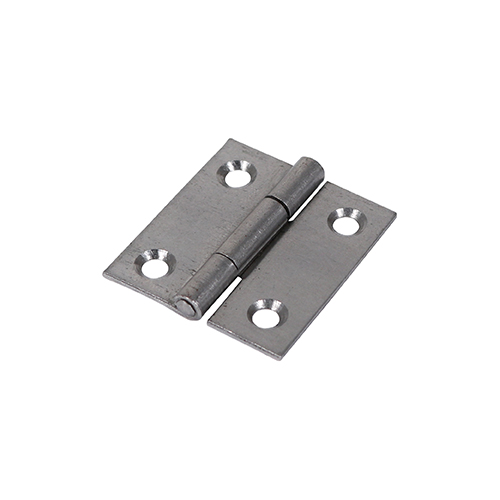

Plain Butt Hinge - Fixed Pin (1838) - Self Colour
38 x 34
- Product Code: 434475
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5056110808376
