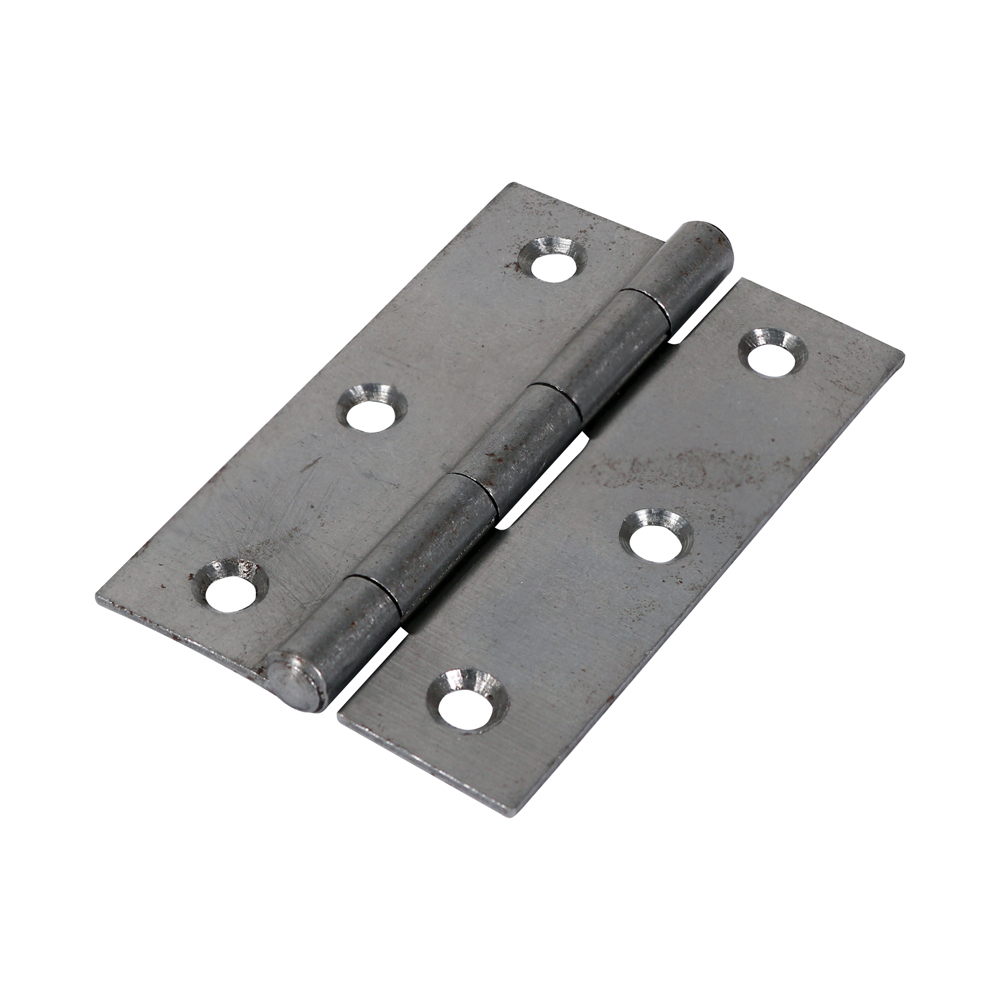

Product Image 1
Product Information
An economy hinge for a variety of uses.
  • Fixed pin for use with inward and outward opening doors
  • Manufactured from steel with a variety of plating finishes
Documents
Brochure Page
Technical Specifications
Product Specification
Length inch 3 1/2
Length mm 90
Open Width mm 60
Size L x W mm 90 x 60
Thickness mm 1.7
Corner Type Square
Finish Self Colour
Knuckle Type Plain
Material Steel
Corrosion Rating 1 - Clean, dry & low humidity environments
Screws Required Per Pair 12
Pack Dimensions L x W x H mm 170 x 92 x 10
Pack Weight kg 0.2
Carton Qty Packs 50
Pallet Qty Packs 2,250 Pairs
Pattern 1838
Product Code 434841
SKU Barcode 5056110808390
Size imp 3.5
Knuckle Dia mm 8.7
Hole Dia mm 6.2
Rec Screw Dia mm 4.0
Attribute Group 1
Brand TIMCO

Plain Butt Hinge - Fixed Pin (1838) - Self Colour

90 x 60

  • Product Code: 434841
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5056110808390
