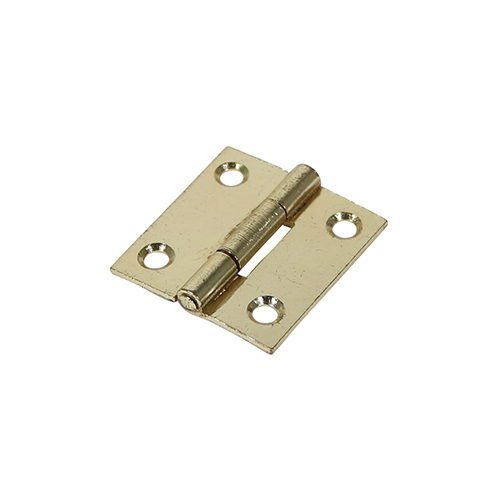

Product Image 1
Product Information
An economy hinge for a variety of uses.
  • Fixed pin for use with inward and outward opening doors
  • Manufactured from steel with a variety of plating finishes
Documents
Brochure Page
Technical Specifications
Product Specification
Length inch 1 1/2
Length mm 38
Open Width mm 34
Size L x W mm 38 x 34
Thickness mm 1.2
Corner Type Square
Finish Electro Brass
Knuckle Type Plain
Material Steel
Corrosion Rating 2 - Occasionally damp/wet, rural and sheltered areas
Screws Required Per Pair 8
Pack Dimensions L x W x H mm 170 x 92 x 10
Pack Weight kg 0.04
Carton Qty Packs 200
Pallet Qty Packs 14,000 Pairs
Pattern 1838
Product Code 434587
SKU Barcode 5056110808482
Size imp 1.5
Knuckle Dia mm 5.6
Hole Dia mm 4.3
Rec Screw Dia mm 3.5
Attribute Group 1
Brand TIMCO

Plain Butt Hinge - Fixed Pin (1838) - Electro Brass

38 x 34

  • Product Code: 434587
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5056110808482
