Product Information
An economy hinge for a variety of uses.
- Fixed pin for use with inward and outward opening doors
- Manufactured from steel with a variety of plating finishes
Documents
Technical Specifications
Product Specification
| Length inch | 4 |
| Length mm | 100 |
| Open Width mm | 70 |
| Screw Size mm | 4.0 x 30 |
| Size L x W mm | 100 x 70 |
| Thickness mm | 1.7 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required Per Pair | 16 |
| Pack Dimensions L x W x H mm | 236 x 116 x 25 |
| Pack Weight kg | 0.29 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Pattern | 1838 |
| Product Code | 434401P |
| SKU Barcode | 5056110884752 |
| Size imp | 4 |
| Screw Size imp | 8 x 1 1/4 |
| Knuckle Dia mm | 9.3 |
| Hole Dia mm | 6 |
| Rec Screw Dia mm | 4.5 |
Product Specifications
| Finish | Epoxy Black |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

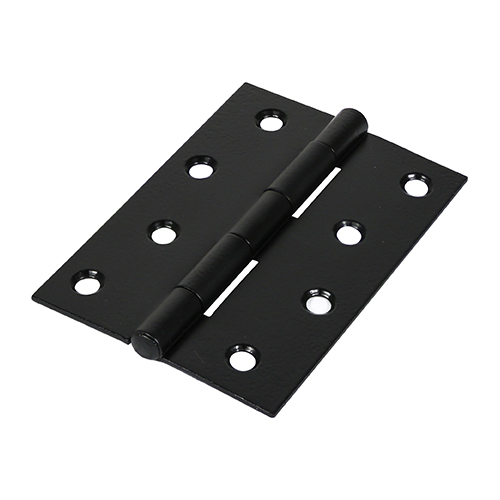

Plain Butt Hinge - Fixed Pin (1838) - Black
100 x 70
- Product Code: 434401P

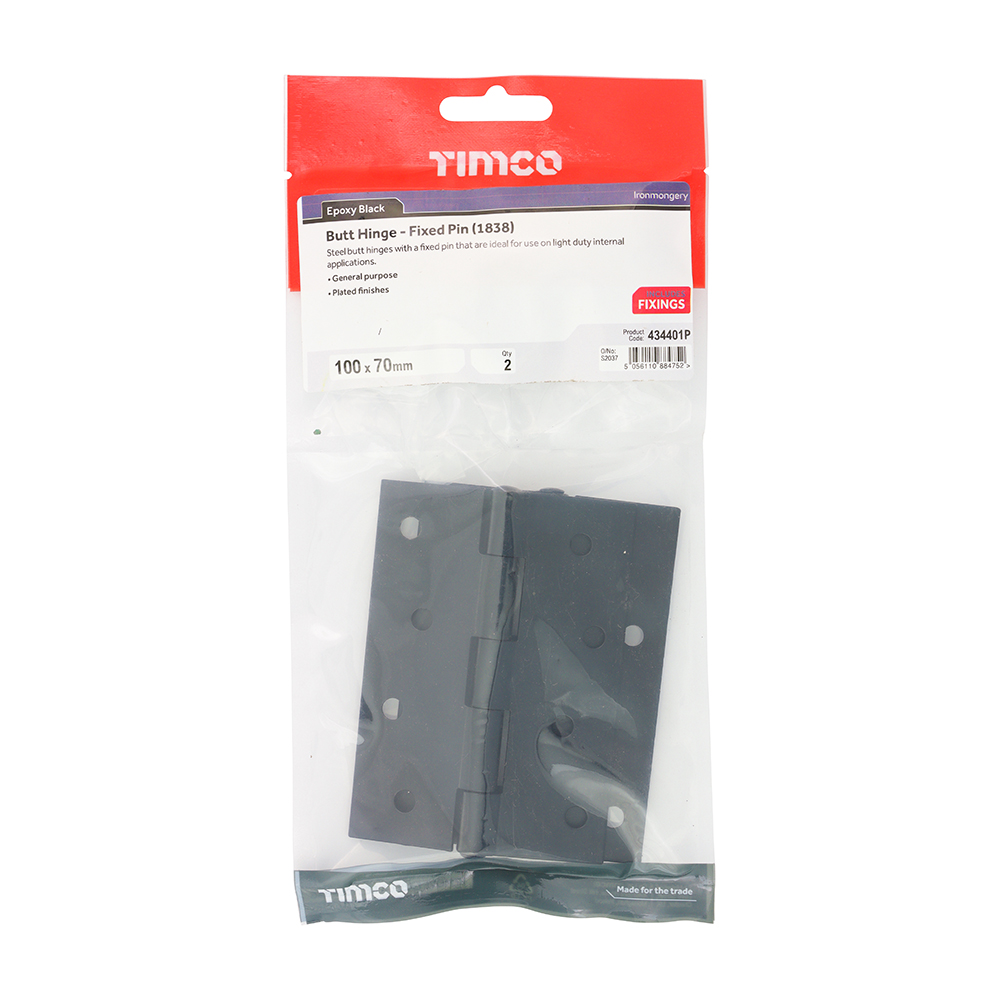

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5056110884752
