Product Information
Ideal for hanging light cupboard and cabinet doors in quality joinery projects.
- Flush finish enables a quick and easy fitting with no morticing required
- Brass bearing to prevent wear and provide a lifetime of silent, smooth door operation
- Manufactured from high quality extruded brass to guarantee no rust and a superior finish
- Available in a variety of finishes
Documents
Technical Specifications
Product Specification
| Length inch | 3 |
| Length mm | 75 |
| Open Width mm | 50 |
| Screw Size mm | 3.5 x 25 |
| Size L x W mm | 75 x 50 |
| Thickness mm | 1.7 |
| Corner Type | Square |
| Knuckle Type | Plain Bearing |
| Pin Material | Brass |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Screws Required Per Pair | 10 |
| No of CSK Screws | 10 |
| Pack Dimensions L x W x H mm | 109 x 62 x 20 |
| Pack Weight kg | 0.1 |
| Carton Qty Packs | 100 |
| Pallet Qty Packs | N/A |
| Product Code | 234797 |
| SKU Barcode | 5056110823713 |
| Size imp | 3 |
| Screw Size imp | 6 x 1 |
| Knuckle Dia mm | 6.4 |
| Hole Dia mm | 4 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Satin Chrome |
| Material | Solid Brass |
Attribute Group 1
| Brand | TIMCO |

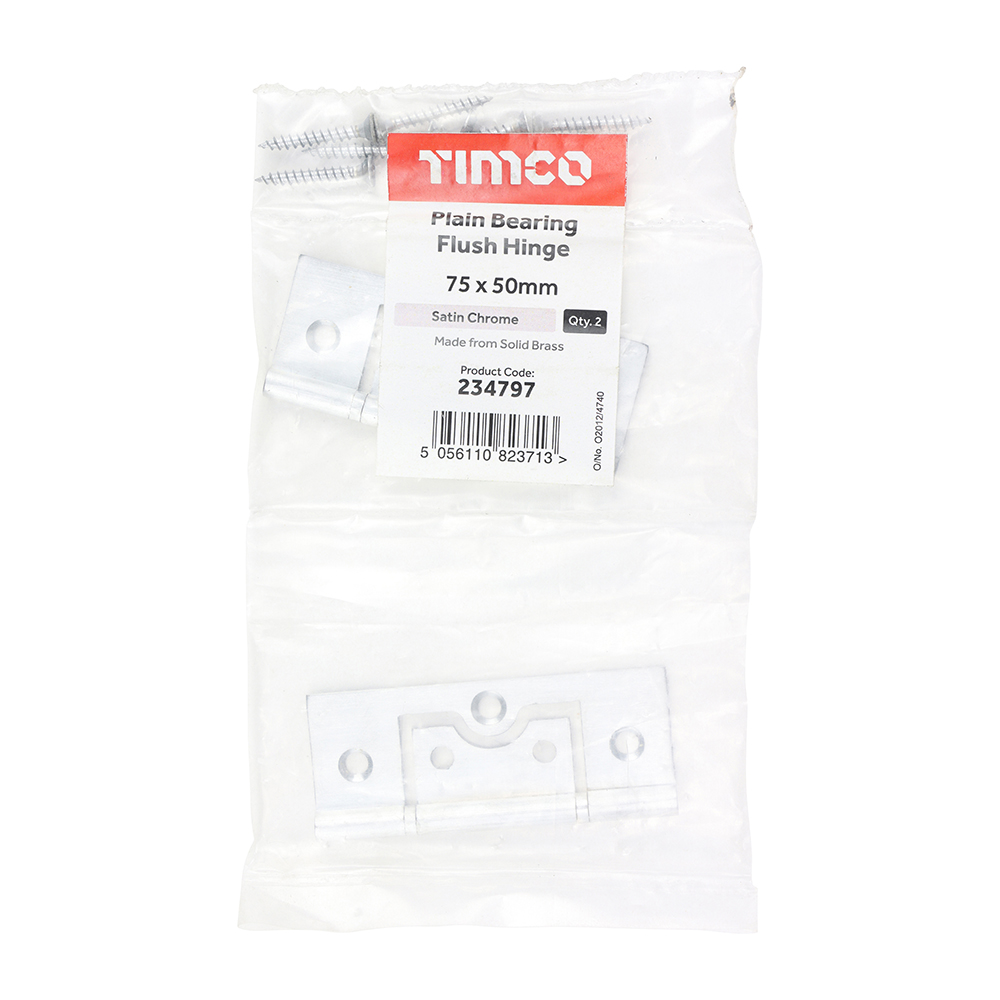

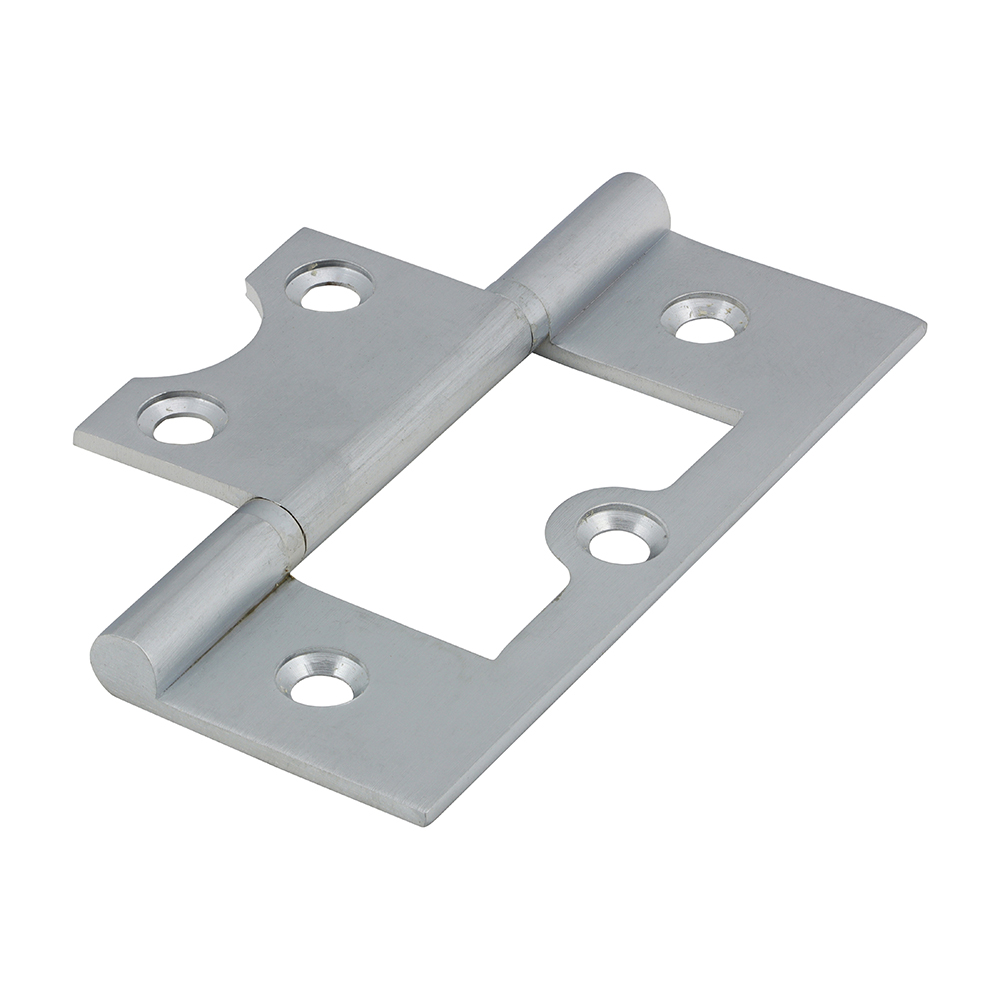

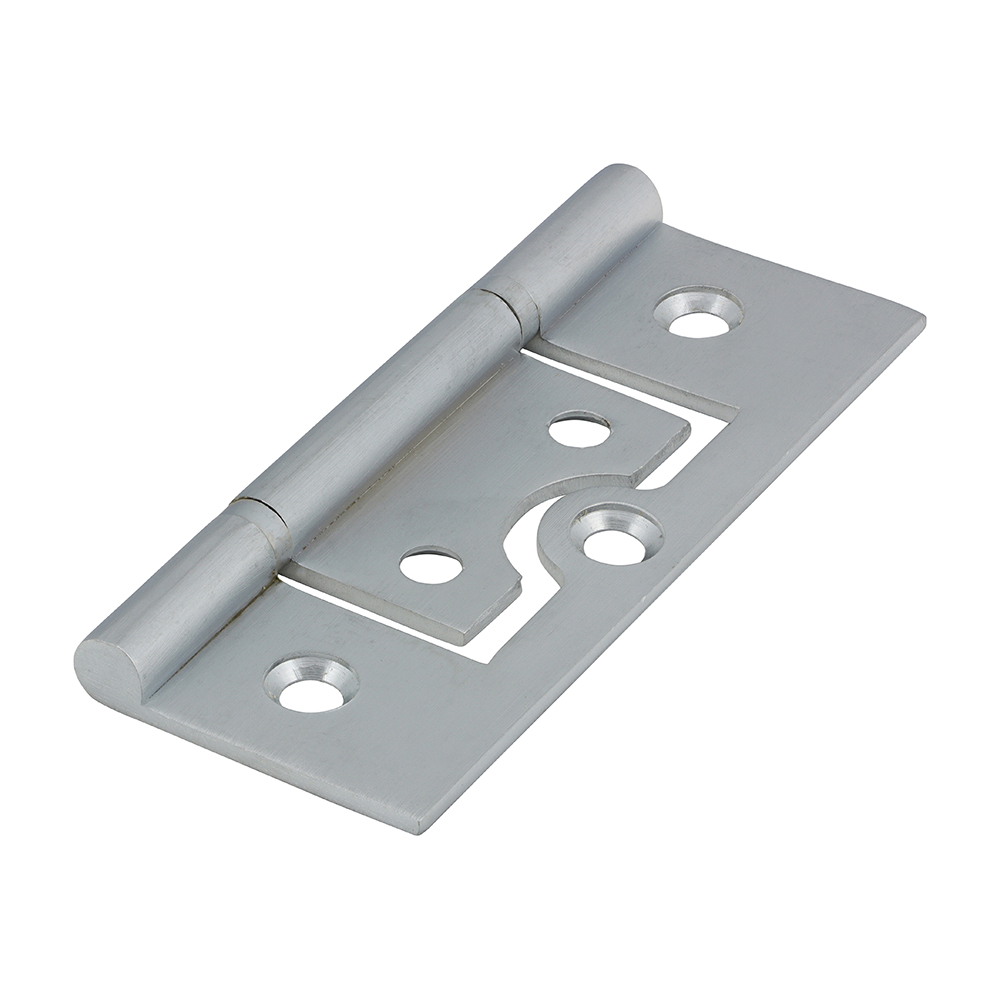

Plain Bearing Flush Hinge - Solid Brass - Satin Chrome
75 x 50
- Product Code: 234797
- Pack Type: Bag
- Pack Quantity: 1
- Barcode: 5056110823713
