Product Information
Commonly fitted to piano lids, plus a wide variety of other uses, providing a neat solution. Also known as continuous hinge.
- Surface mounted no rebating required for quick and easy installation
- Designed to run the full length of the door or cabinet for extra stability
- Easily cut to required length
- Manufactured from steel available in electro brass and nickel finishes
Documents
Technical Specifications
Product Specification
| Length inch | 70 6/7 |
| Length mm | 1800 |
| Open Width mm | 38 |
| Size L x W mm | 1800 x 38 |
| Thickness mm | 0.9 |
| Corner Type | Square |
| Knuckle Type | Plain |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Screws Required per Hinge | 60 |
| Pack Dimensions L x W x H mm | 1800 x 38 x 11 |
| Pack Weight kg | 0.514 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | 1200 |
| Product Code | 434563 |
| SKU Barcode | 5056110809489 |
| Knuckle Dia mm | 4.5 |
| Hole Dia mm | 3.8 |
| Rec Screw Dia mm | 3.0 |
Product Specifications
| Finish | Electro Brass |
| Material | Steel |
Attribute Group 1
| Brand | TIMCO |

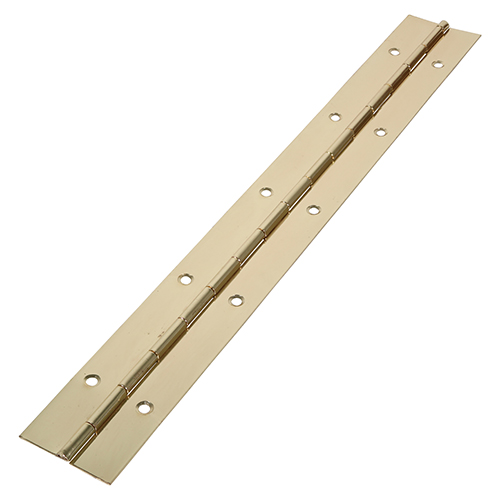

Piano Hinge - Electro Brass
1800 x 38
- Product Code: 434563
- Pack Type: Tube
- Pack Quantity: 1
- Barcode: 5056110809489
