Product Information

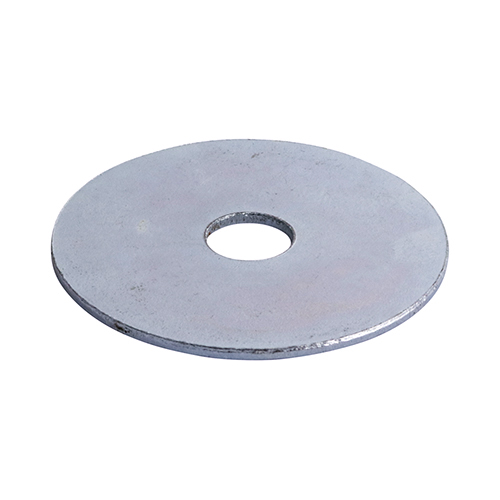

A larger diameter washer ideal for spreading the clamping load, reducing a hole diameter and packing out. Sometimes known as a ‘mudguard’ washer.
- Plated in Trivalent Chromium (Cr3) Zinc
Documents
Technical Specifications
Product Specification
| Thickness mm | 1.5 |
| Washer Type | Penny / Repair |
| Corrosion Rating | 1 - Clean, dry & low humidity environments |
| Pack Dimensions L x W x H mm | 66 x 64 x 34 |
| Pack Weight kg | 0.42 |
| Carton Qty Packs | 38 |
| Pallet Qty Packs | 1216 |
| DIN Standard | DIN 9054 |
| Product Code | WP625Z |
| SKU Barcode | 5055331843531 |
| Outer Dia mm | 25 |
| Size x Outer Dia mm | M6 x 25 |
| Thread Dia mm | M6 |
| Hole Dia mm | M6 |
Product Specifications
| Finish | Zinc & Clear Cr3 |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |
Penny / Repair Washers - Zinc
M6 x 25
- Product Code: WP625Z
- Pack Type: Box
- Pack Quantity: 100
- Barcode: 5055331843531
