Product Information

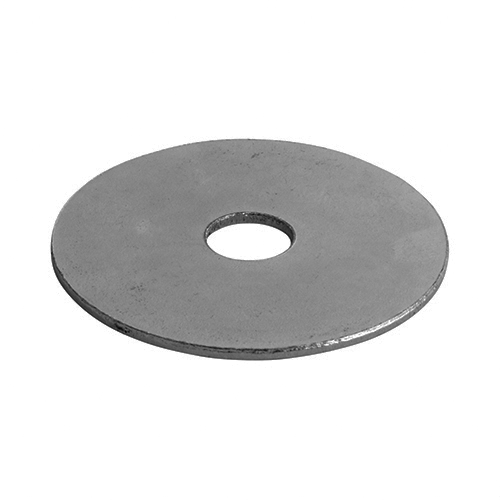

A larger diameter washer ideal for spreading the clamping load, reducing a hole diameter and packing out. Sometimes known as a ‘mudguard’ washer. Manufactured from A2 Stainless Steel offering superior corrosion resistance, perfect for external applications. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics.
- Conforms to DIN 9054
Documents
Technical Specifications
Product Specification
| Thickness mm | 1.5 |
| Washer Type | Penny / Repair |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Pack Dimensions L x W x H mm | 93 x 46 x 15 |
| Pack Weight kg | 0.044 |
| Carton Qty Packs | 400 |
| Pallet Qty Packs | N/A |
| DIN Standard | DIN 9054 |
| Product Code | WP1025SSX |
| SKU Barcode | 5055893342503 |
| Outer Dia mm | 25 |
| Size x Outer Dia mm | M10 x 25 |
| Thread Dia mm | M10 |
| Hole Dia mm | M10 |
Product Specifications
| Material | Austenitic Stainless Steel (A2-304) |
Attribute Group 1
| Brand | TIMCO |

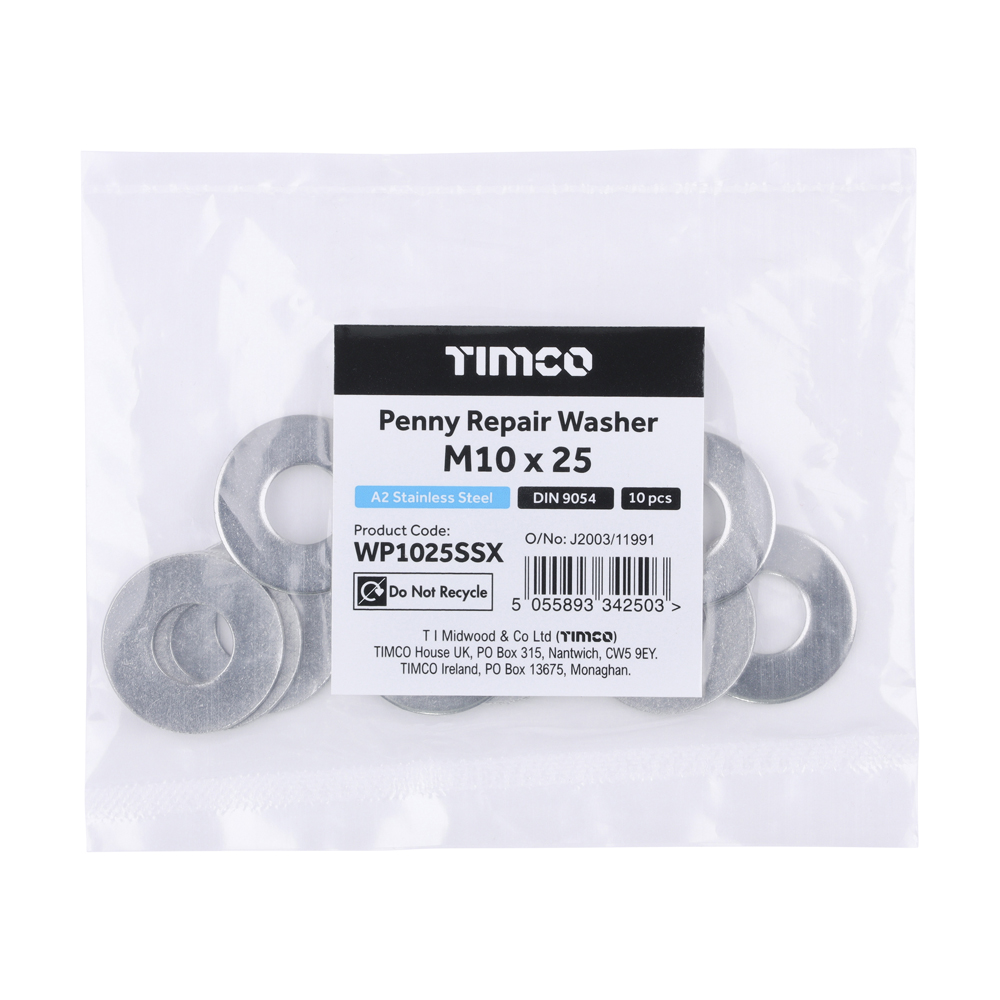

Penny / Repair Washers - A2 Stainless Steel
M10 x 25
- Product Code: WP1025SSX
- Pack Type: Bag
- Pack Quantity: 10
- Barcode: 5055893342503
