Product Information
Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 14 |
| Band Length mm | 350 |
| Band Thickness mm | 2.3 |
| Leaf Size L x W mm | 127 x 30 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Gate Weight kg | 60 |
| To Suit Gate Width mm | 700 - 1050 |
| Pack Dimensions L x W x H mm | 160 x 20 x 460 |
| Pack Weight kg | 0.93 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | STH14GB |
| SKU Barcode | 5055893356654 |
| Knuckle Dia mm | 12 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

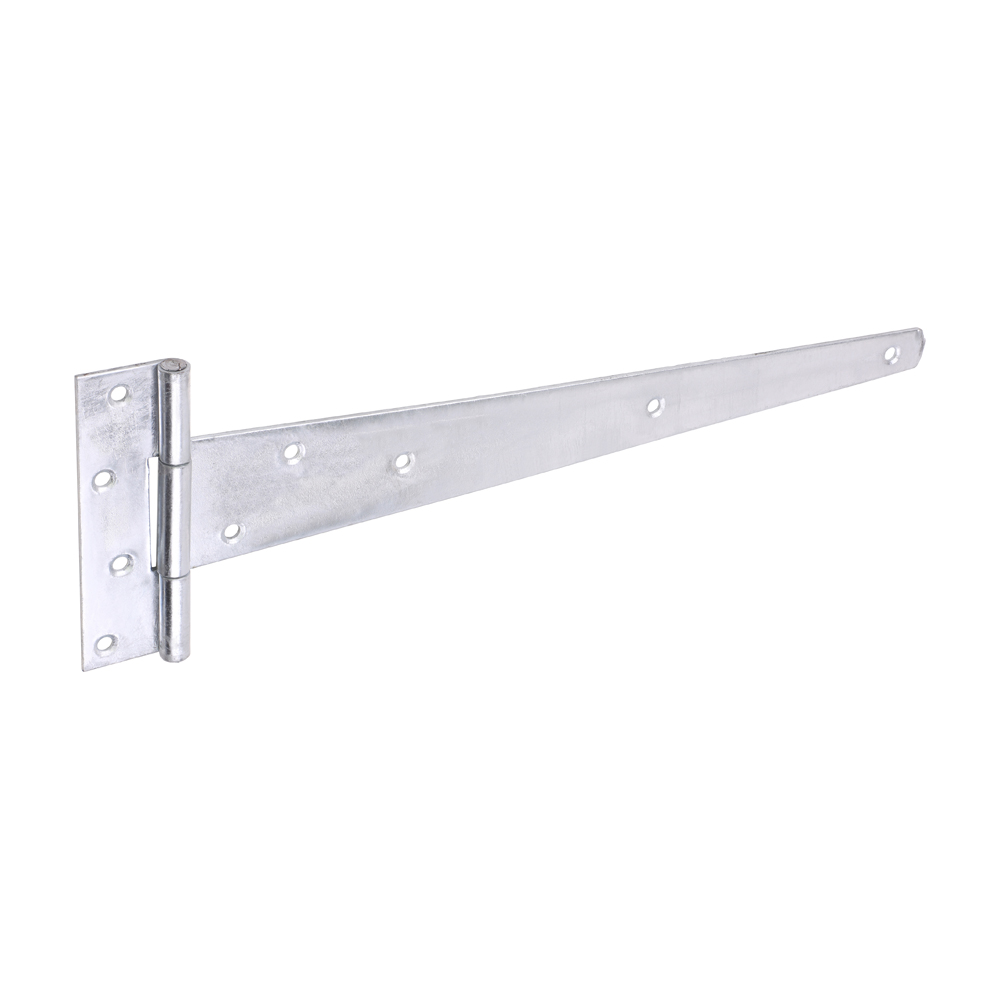

Pair of Strong Tee Hinges - Hot Dipped Galvanised
14"
- Product Code: STH14GB

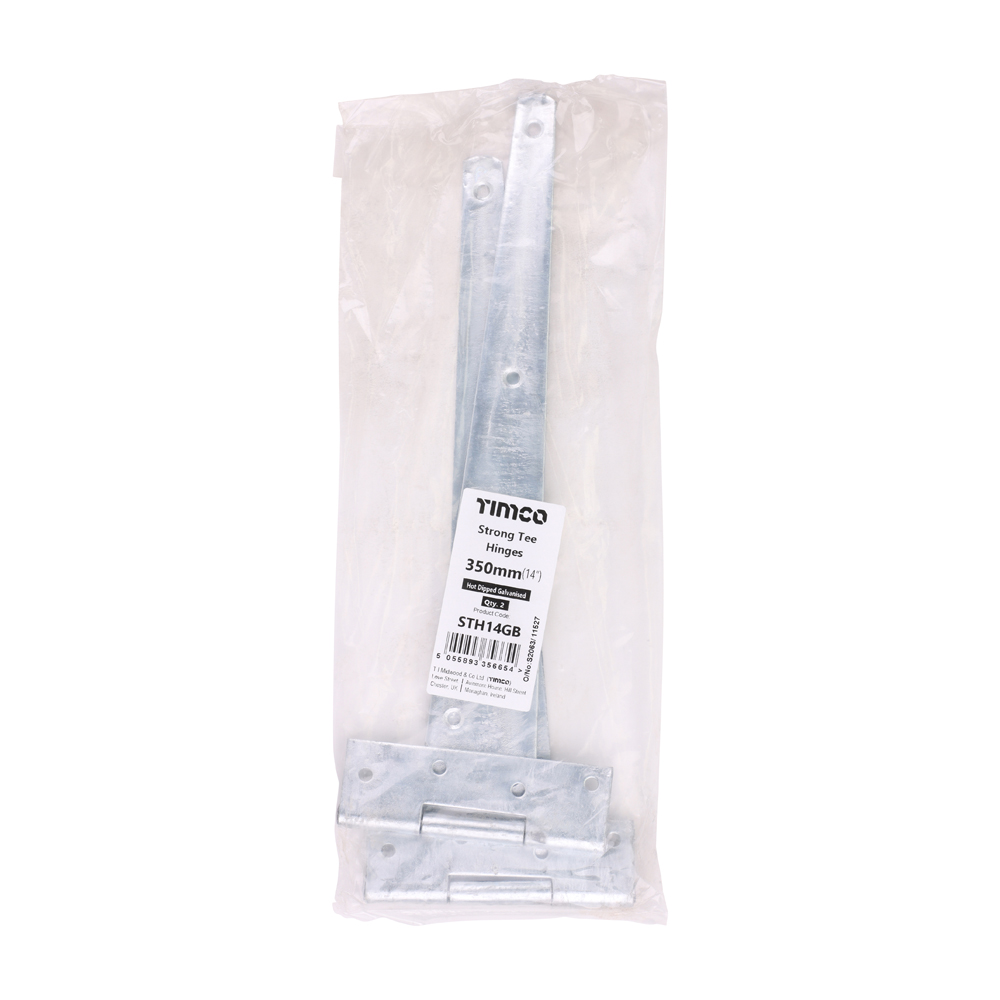

- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356654
