Product Information
Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 18 |
| Band Length mm | 450 |
| Band Thickness mm | 2.8 |
| Leaf Size L x W mm | 150 x 30 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| CSK Screw Size mm | 5.0 x 30 |
| Max Gate Weight kg | 80 |
| No of CSK Screws | 18 |
| To Suit Gate Width mm | 900 - 1350 |
| Pack Dimensions L x W x H mm | 40 x 220 x 700 |
| Pack Weight kg | 1.6 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | STH18G |
| SKU Barcode | 5055893370568 |
| Knuckle Dia mm | 14 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
| Included Items | 5.0 x 30mm Countersunk Screws (Qty 18) |
Attribute Group 1
| Brand | TIMCO |

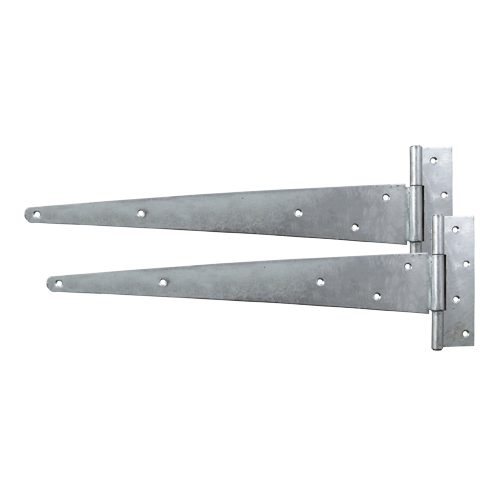

Pair of Strong Tee Hinges - Hot Dipped Galvanised
18"
- Product Code: STH18G
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893370568
