Product Information
Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 10 |
| Band Length mm | 250 |
| Band Thickness mm | 2.3 |
| Leaf Size L x W mm | 100 x 20 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 4.0 x 30 |
| Max Gate Weight kg | 40 |
| No of CSK Screws | 14 |
| To Suit Gate Width mm | 500 - 750 |
| Pack Dimensions L x W x H mm | 40 x 160 x 390 |
| Pack Weight kg | 0.6 |
| Carton Qty Packs | 6 Pairs |
| Pallet Qty Packs | N/A |
| Product Code | STH10B |
| SKU Barcode | 5055893370469 |
| Knuckle Dia mm | 12 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Countersunk Screws (Qty 14) |
Attribute Group 1
| Brand | TIMCO |

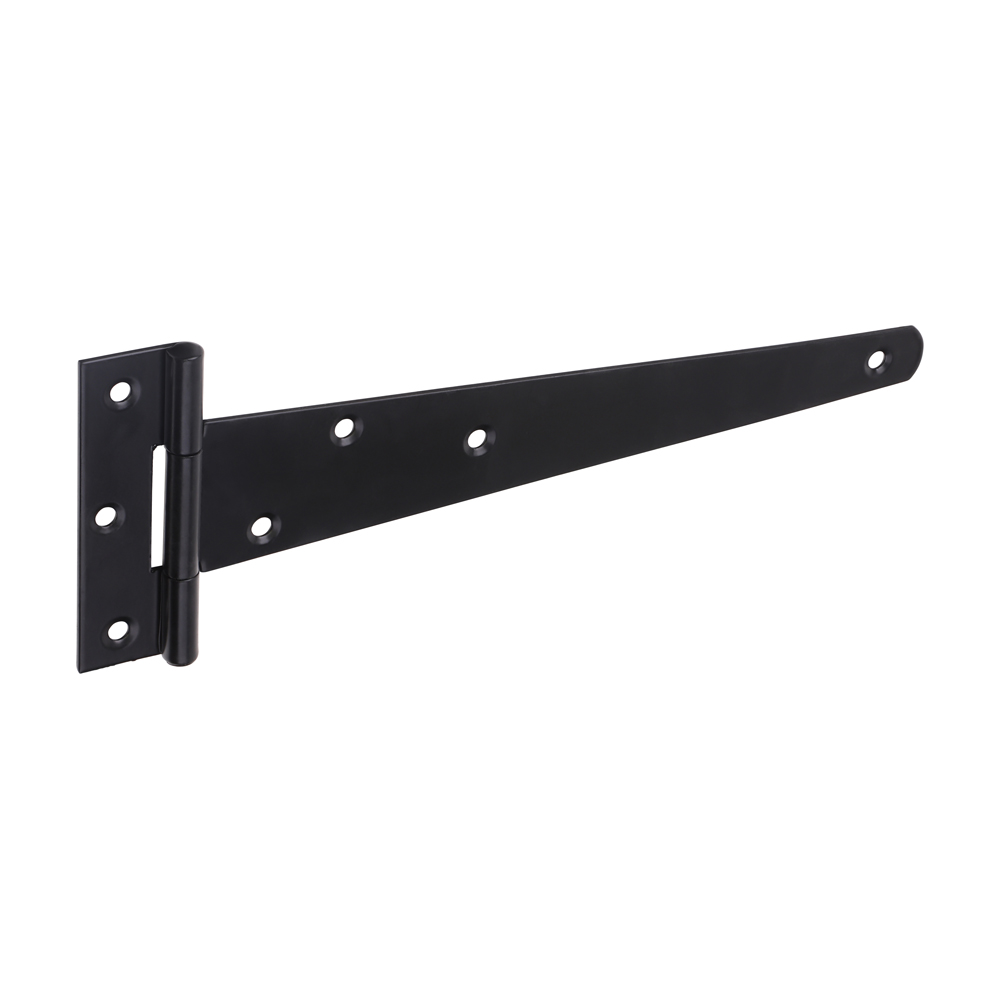

Pair of Strong Tee Hinges - Black
10"
- Product Code: STH10B
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893370469
