Product Information
Ideal for heavy weight high use gates, sheds and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 24 |
| Band Length mm | 600 |
| Band Thickness mm | 2.8 |
| Leaf Size L x W mm | 166 x 40 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Gate Weight kg | 80 |
| To Suit Gate Width mm | 1200 - 1800 |
| Pack Dimensions L x W x H mm | 220 x 20 x 700 |
| Pack Weight kg | 2.05 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | STH24BB |
| SKU Barcode | 5055893356623 |
| Knuckle Dia mm | 14 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

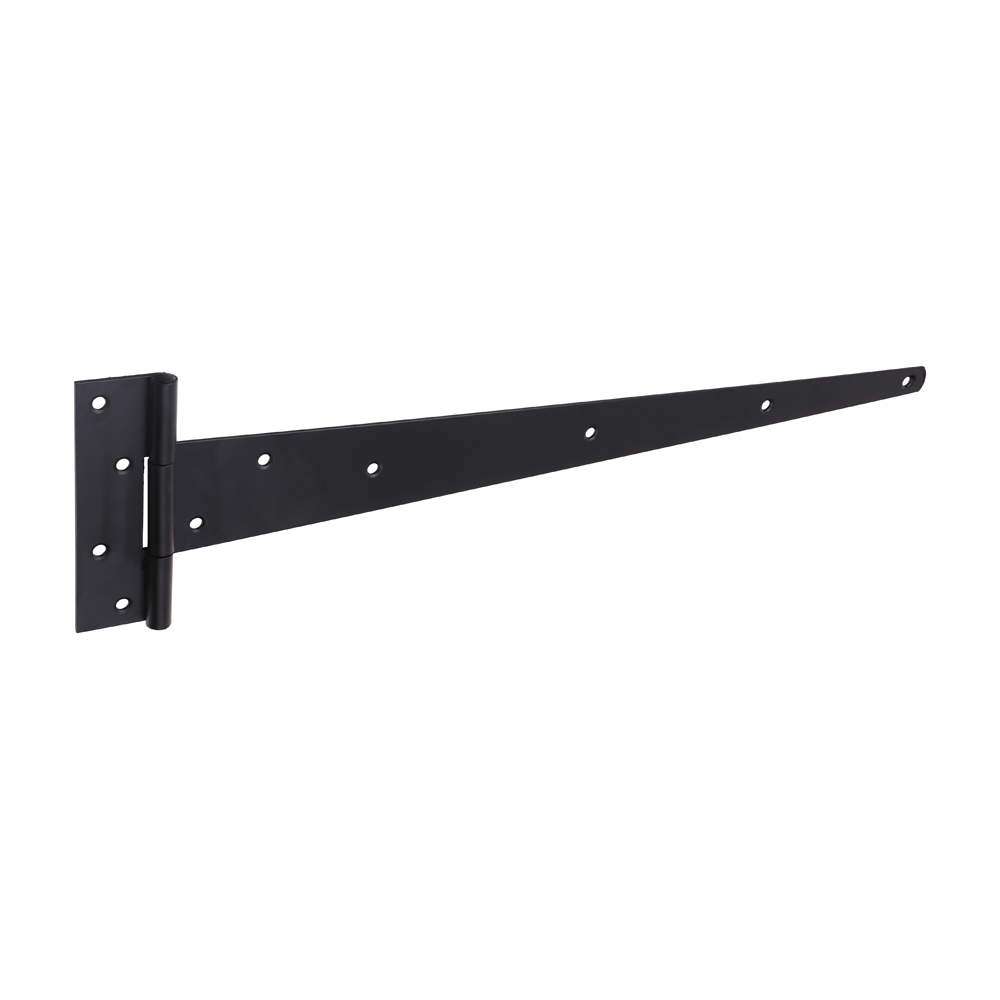

Pair of Strong Tee Hinges - Black
24"
- Product Code: STH24BB

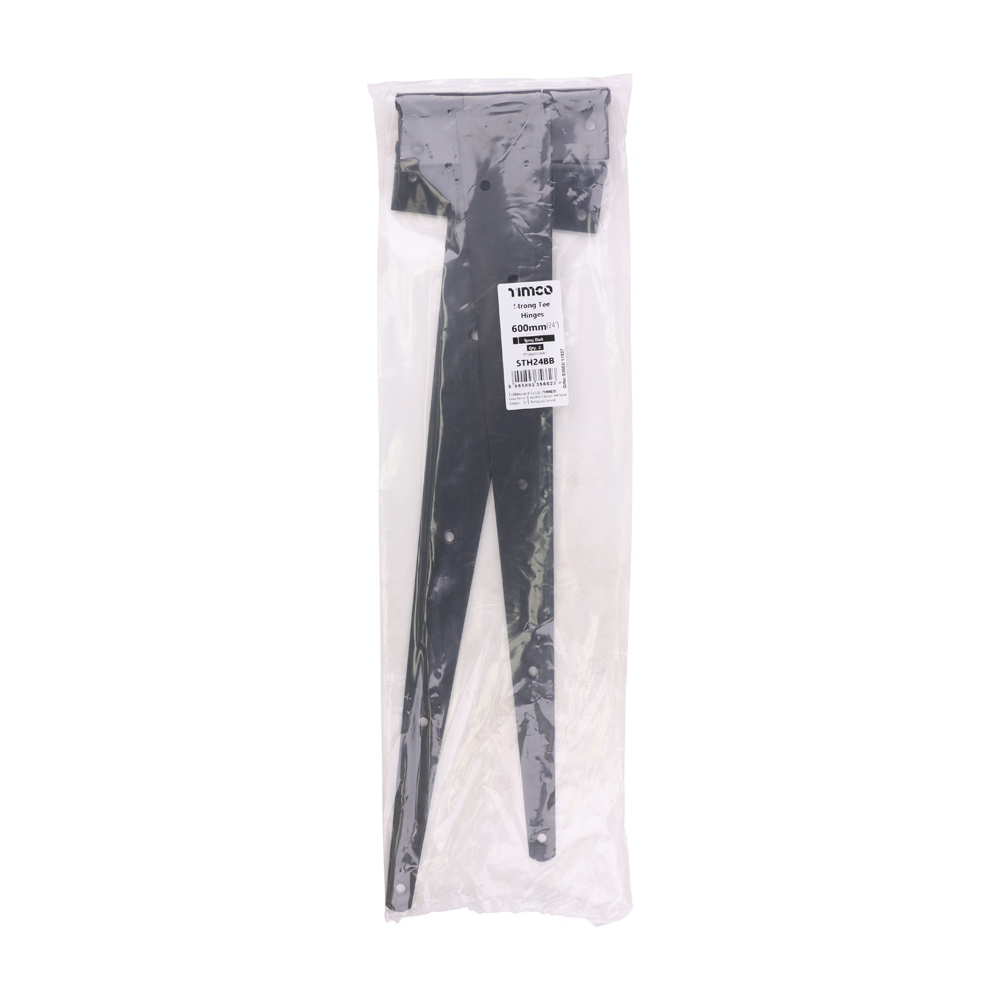

- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356623
