Product Information
Ideal for heavy weight high use gates and shed doors in domestic, commercial and agricultural applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 16 |
| Band Length mm | 400 |
| Band Thickness mm | 3 |
| Leaf Size L x W mm | 145 x 40 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Gate Weight kg | 80 |
| To Suit Gate Width mm | 800 - 1200 |
| Pack Dimensions L x W x H mm | 180 x 20 x 540 |
| Pack Weight kg | 1.58 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | 442336 |
| SKU Barcode | 5055893390696 |
| Knuckle Dia mm | 16 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

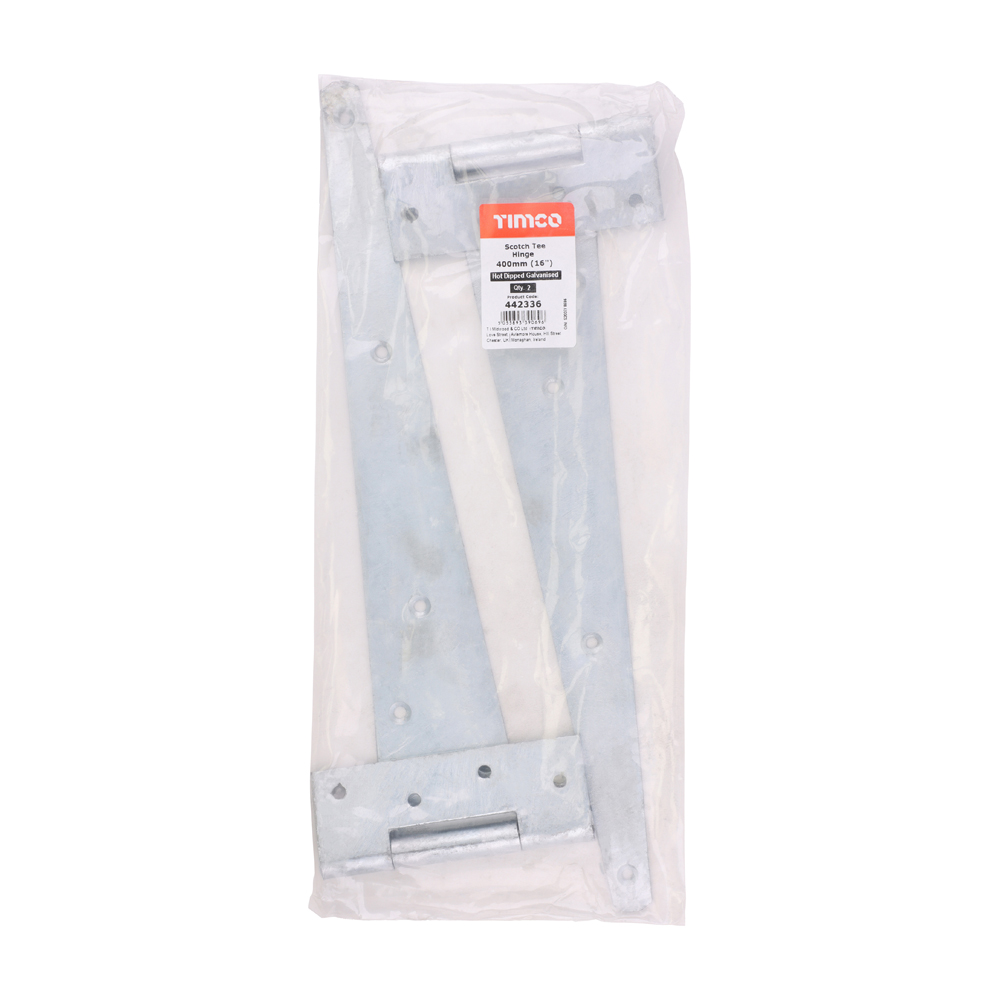

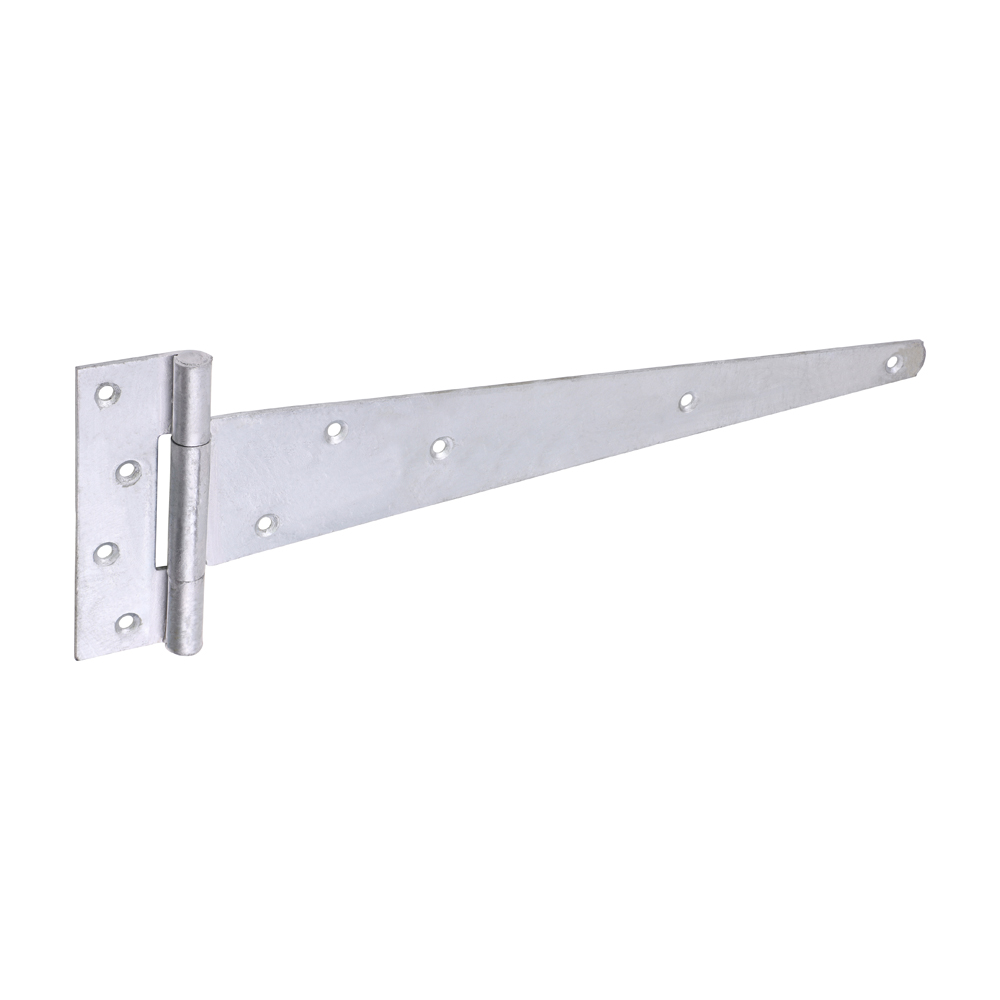

Pair of Scotch Tee Hinges - Hot Dipped Galvanised
16"
- Product Code: 442336
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893390696
