Product Information
Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 14 |
| Band Length mm | 350 |
| Band Thickness mm | 2 |
| Leaf Size L x W mm | 115 x 25 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 4.0 x 30 |
| Max Gate Weight kg | 30 |
| No of CSK Screws | 14 |
| To Suit Gate Width mm | 700 - 1050 |
| Pack Dimensions L x W x H mm | 40 x 160 x 460 |
| Pack Weight kg | 0.66 |
| Carton Qty Packs | 8 Pairs |
| Product Code | MTH14Z |
| SKU Barcode | 5055893370360 |
| Knuckle Dia mm | 9.5 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Included Items | 4.0 x 30mm Countersunk Screws (Qty 14) |
Attribute Group 1
| Brand | TIMCO |

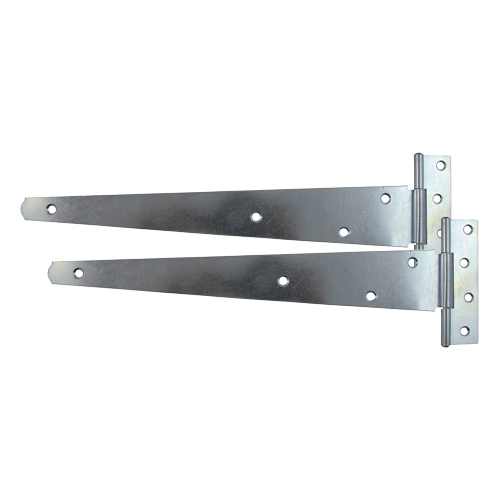

Pair of Medium Tee Hinges - Zinc
14"
- Product Code: MTH14Z
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893370360
