Product Information
Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 18 |
| Band Length mm | 450 |
| Band Thickness mm | 2.2 |
| Leaf Size L x W mm | 140 x 30 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 5.0 x 30 |
| Max Gate Weight kg | 40 |
| No of CSK Screws | 18 |
| To Suit Gate Width mm | 900 - 1350 |
| Pack Dimensions L x W x H mm | 534 x 176 x 33 |
| Pack Weight kg | 1.028 |
| Carton Qty Packs | 10 Pairs |
| Pallet Qty Packs | N/A |
| Product Code | MTH18Z |
| SKU Barcode | 5055893370391 |
| Knuckle Dia mm | 11.5 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Included Items | 5.0 x 30mm Countersunk Screws (Qty 18) |
Attribute Group 1
| Brand | TIMCO |

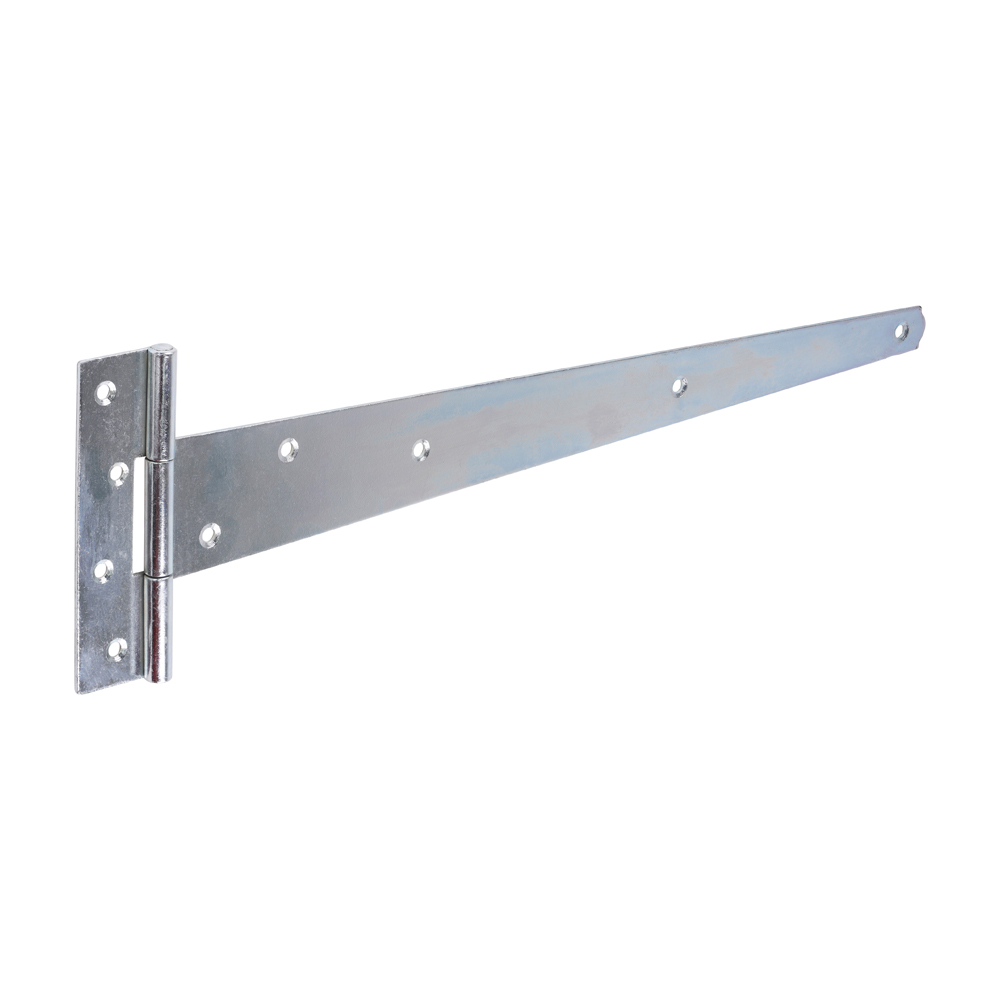

Pair of Medium Tee Hinges - Zinc
18"
- Product Code: MTH18Z

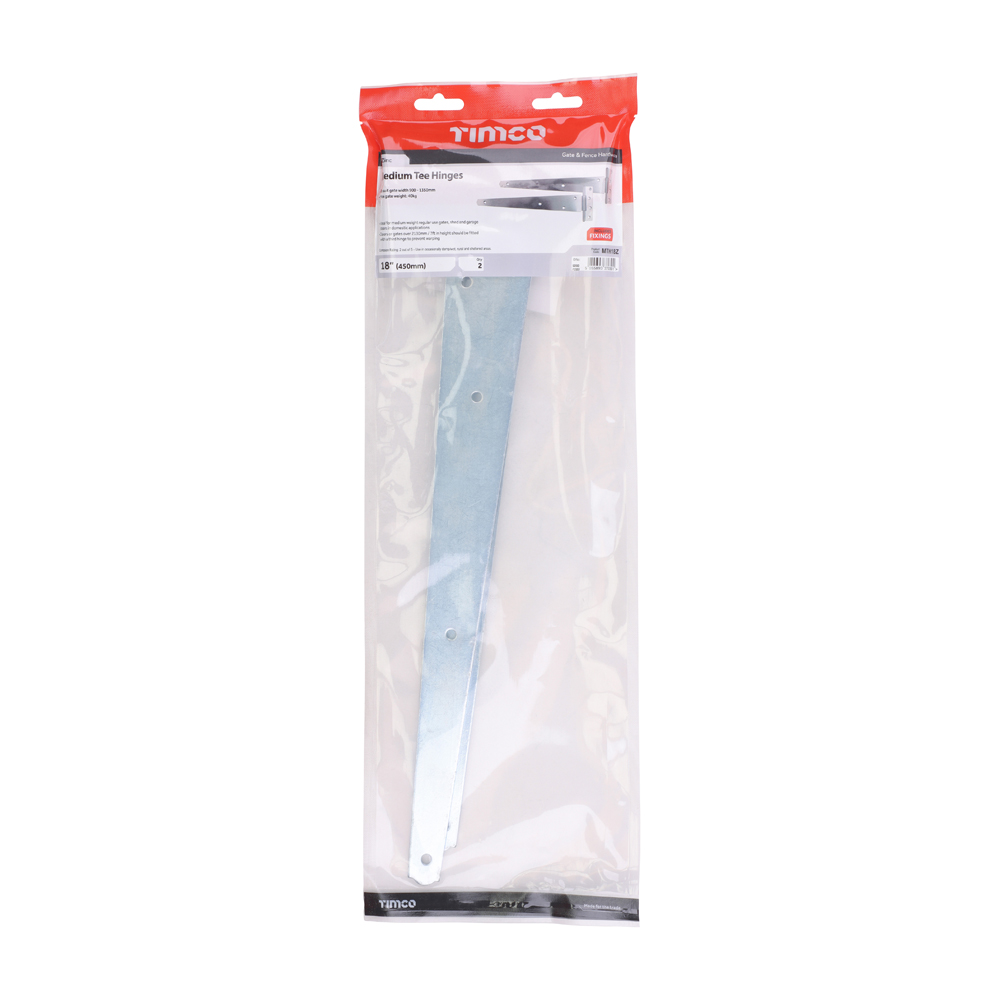

- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893370391
