Product Information
Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 12 |
| Band Length mm | 300 |
| Band Thickness mm | 2 |
| Leaf Size L x W mm | 100 x 25 |
| Corrosion Rating | 4 - Urban & industrial areas with a moderate salt atmosphere |
| Max Gate Weight kg | 30 |
| To Suit Gate Width mm | 600 - 900 |
| Pack Dimensions L x W x H mm | 160 x 20 x 390 |
| Pack Weight kg | 0.53 |
| Carton Qty Packs | 40 |
| Pallet Qty Packs | N/A |
| Product Code | MTH12GB |
| SKU Barcode | 5055893356524 |
| Knuckle Dia mm | 9.5 |
| Rec Screw Dia mm | 4.0 |
Product Specifications
| Finish | Hot Dipped Galvanised |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

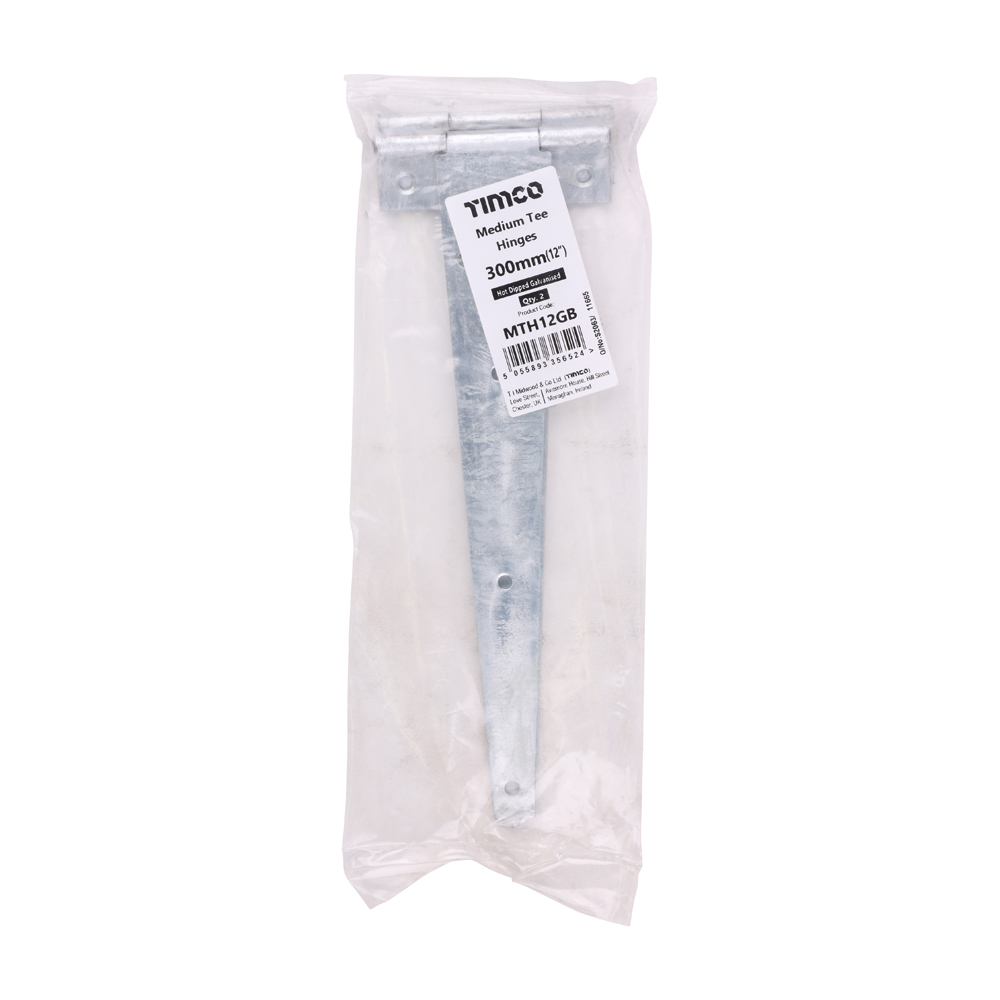

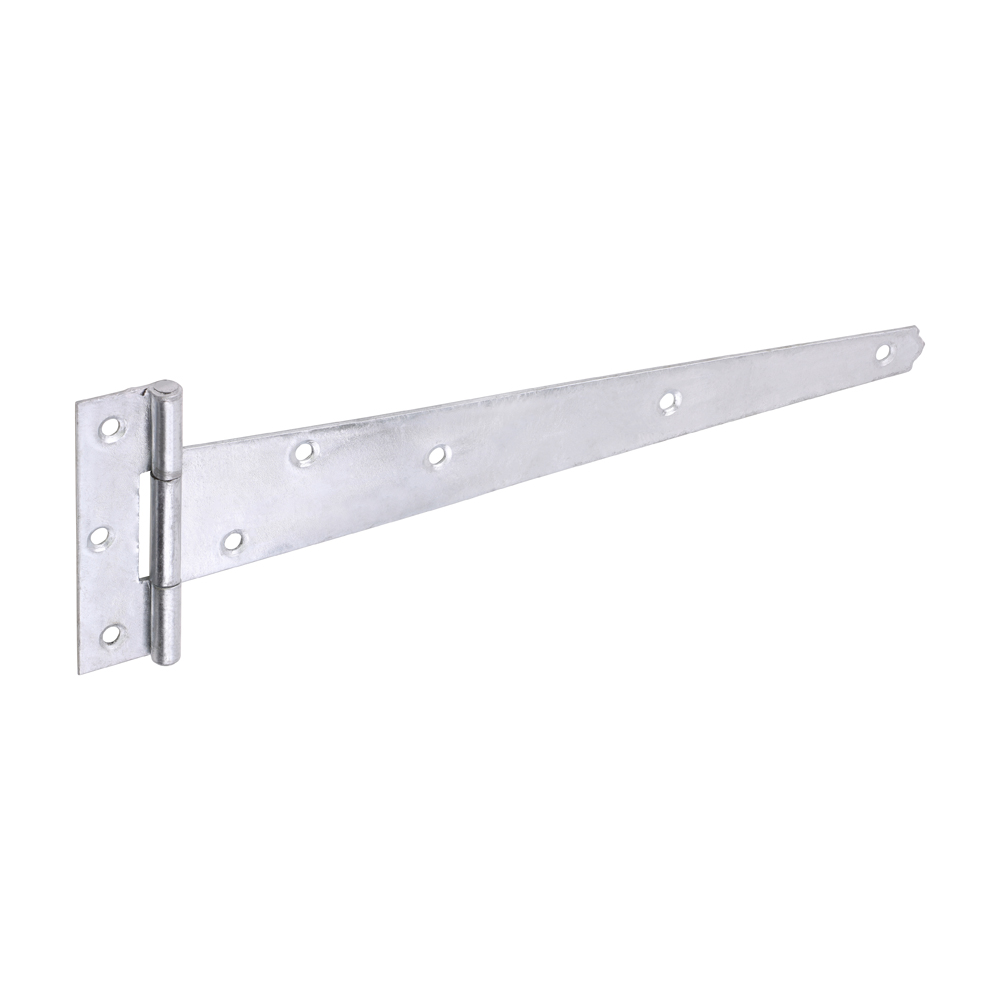

Pair of Medium Tee Hinges - Hot Dipped Galvanised
12"
- Product Code: MTH12GB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356524
