Product Information
Ideal for medium weight regular use gates, shed and garage doors in domestic applications. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings not included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 16 |
| Band Length mm | 400 |
| Band Thickness mm | 2.2 |
| Leaf Size L x W mm | 128 x 30 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Max Gate Weight kg | 40 |
| To Suit Gate Width mm | 800 - 1200 |
| Pack Dimensions L x W x H mm | 180 x 20 x 540 |
| Pack Weight kg | 0.86 |
| Carton Qty Packs | 20 |
| Pallet Qty Packs | N/A |
| Product Code | MTH16BB |
| SKU Barcode | 5055893356432 |
| Knuckle Dia mm | 11.5 |
| Rec Screw Dia mm | 5.0 |
Product Specifications
| Finish | Epoxy Black |
| Material | Carbon Steel |
Attribute Group 1
| Brand | TIMCO |

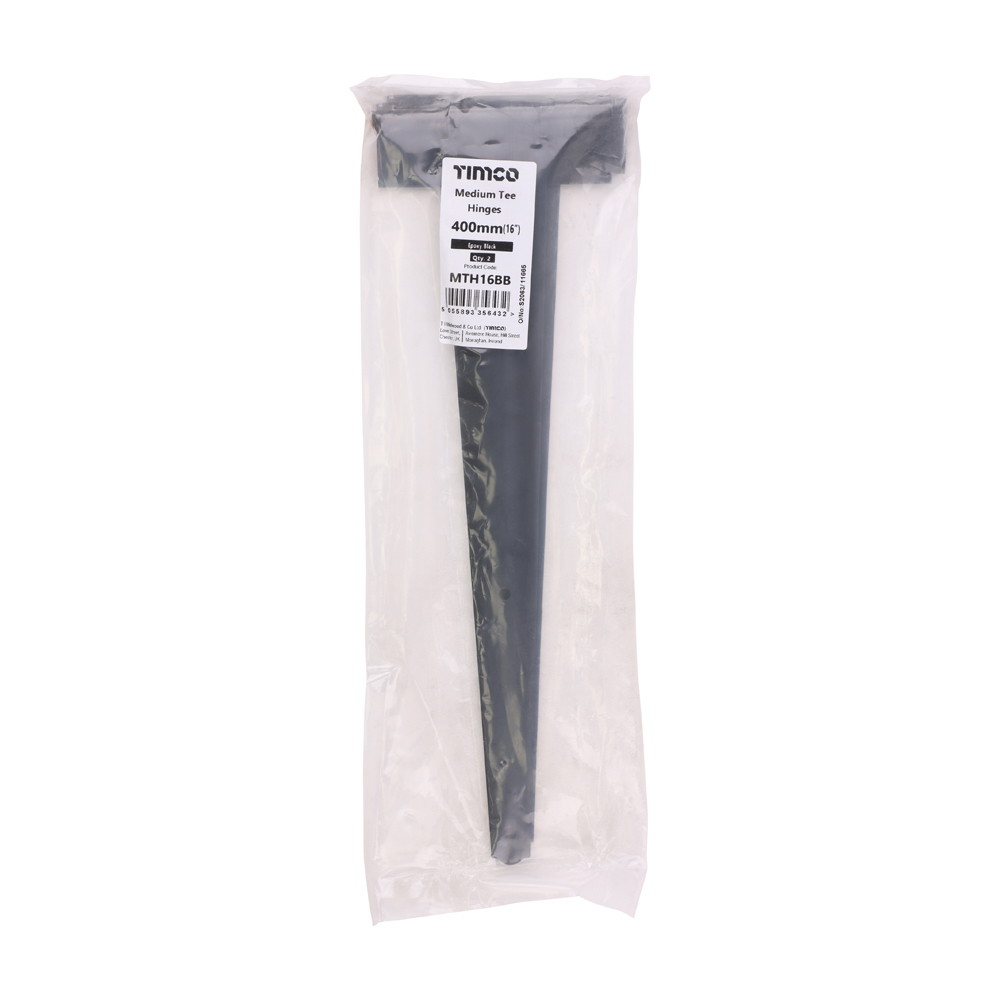

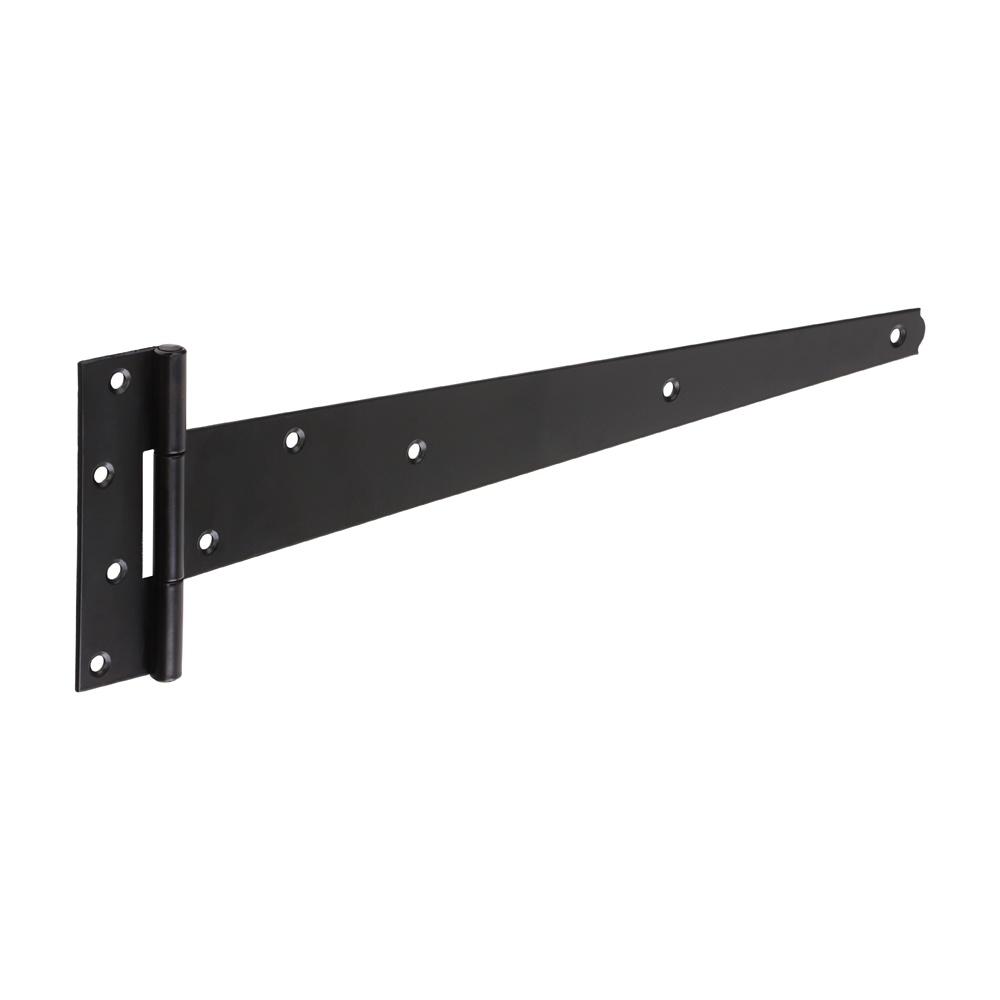

Pair of Medium Tee Hinges - Black
16"
- Product Code: MTH16BB
- Pack Type: Plain Bag
- Pack Quantity: 1
- Barcode: 5055893356432
