Product Information
Ideal for lightweight low use gates, sheds and animal hutches. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
| Band Length inch | 10 |
| Band Length mm | 250 |
| Band Thickness mm | 1.5 |
| Leaf Size L x W mm | 80 x 20 |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| CSK Screw Size mm | 3.5 x 25 |
| Max Gate Weight kg | 10 |
| No of CSK Screws | 14 |
| To Suit Gate Width mm | 500 - 750 |
| Pack Dimensions L x W x H mm | 336 x 118 x 20 |
| Pack Weight kg | 0.25 |
| Carton Qty Packs | 10 |
| Pallet Qty Packs | N/A |
| Product Code | LTH10Z |
| SKU Barcode | 5055893370278 |
| Knuckle Dia mm | 7.5 |
| Rec Screw Dia mm | 3.5 |
Product Specifications
| Finish | Zinc |
| Material | Carbon Steel |
| Included Items | 3.5 x 25mm Countersunk Screws (Qty 14) |
Attribute Group 1
| Brand | TIMCO |

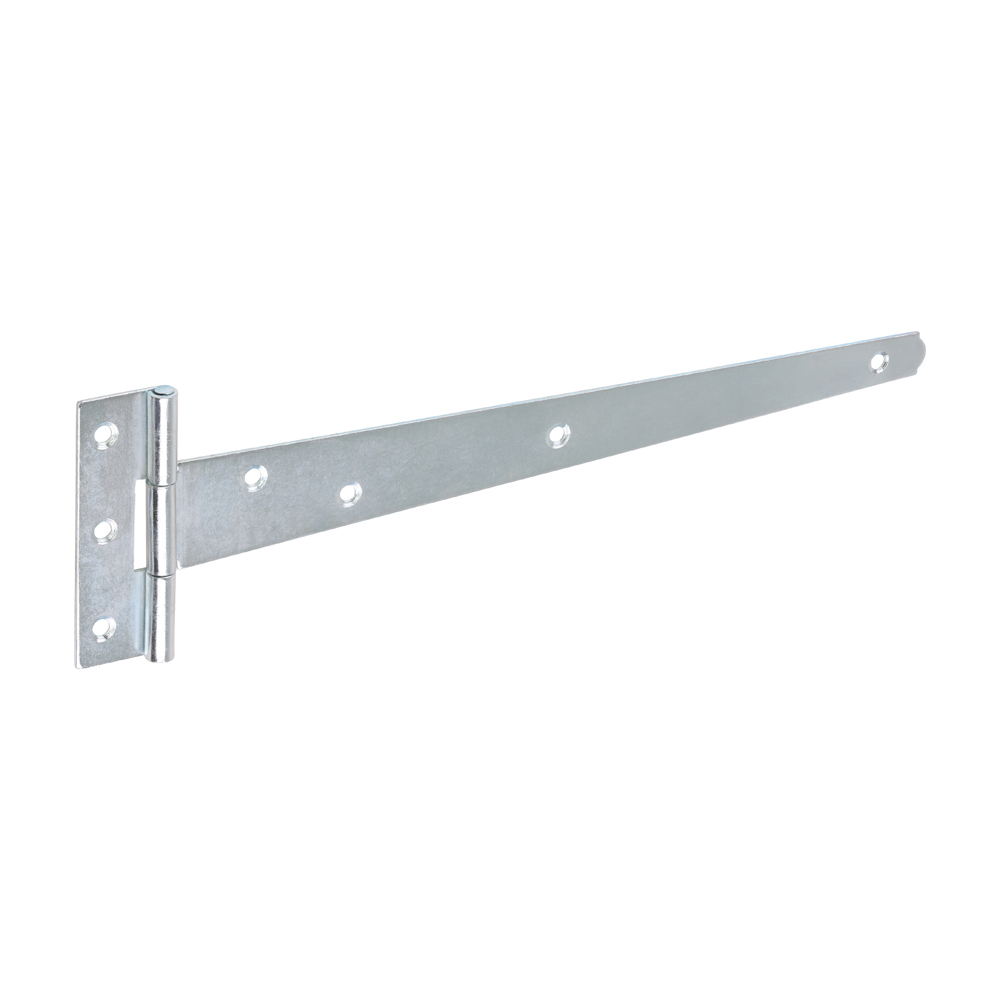

Pair of Light Tee Hinges - Zinc
10"
- Product Code: LTH10Z
- Pack Type: TIMbag
- Pack Quantity: 1
- Barcode: 5055893370278
