Product Information
Heavy reversible hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinges mount into the hinge cups and prevent gates or doors from being lifted off. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping. Fixings included.
Documents
Technical Specifications
Product Specification
Band Length inch 12
Band Length mm 300
Band Thickness mm 4.8
Band Width mm 40
Carriage Bolt Size mm M10 x 100
Nut Size mm M10
Washer Size mm M10
Type Reversible
Corrosion Rating 4 - Urban & industrial areas with a moderate salt atmosphere
CSK Screw Size mm 6.0 x 40
No of Nuts 2
No of CSK Screws 20
No of Carriage Bolts 2
No of Washers 2
To Suit Gate Width mm 600 - 900
Pack Dimensions L x W x H mm 160 x 30 x 395
Pack Weight kg 1.92
Carton Qty Packs 5 Pairs
Pallet Qty Packs 250 Pairs
Product Code HRH300G
SKU Barcode 5055893360712
Pin Dia mm 12
Pin Dia inch 1/2
Rec Screw Dia mm 6.0
To Fit Carriage Bolt Dia mm M10
No of Bolt Holes 2
Product Specifications
Finish Hot Dipped Galvanised
Material Carbon Steel
Nut Type Hex Full
Included Items M10 x 100mm Carriage Bolts (Qty 2), M10 Hex Full Nuts (Qty 2), M10 Washers (Qty 2), 6.0 x 40mm Countersunk Screws (Qty 20)
Attribute Group 1
Brand TIMCO

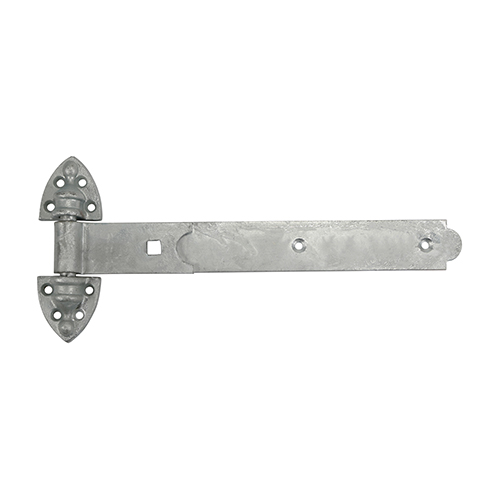

Pair of Heavy Reversible Hinges - Hot Dipped Galvanised

300mm

  • Product Code: HRH300G
  • Pack Type: Plain Bag
  • Pack Quantity: 1
  • Barcode: 5055893360712
